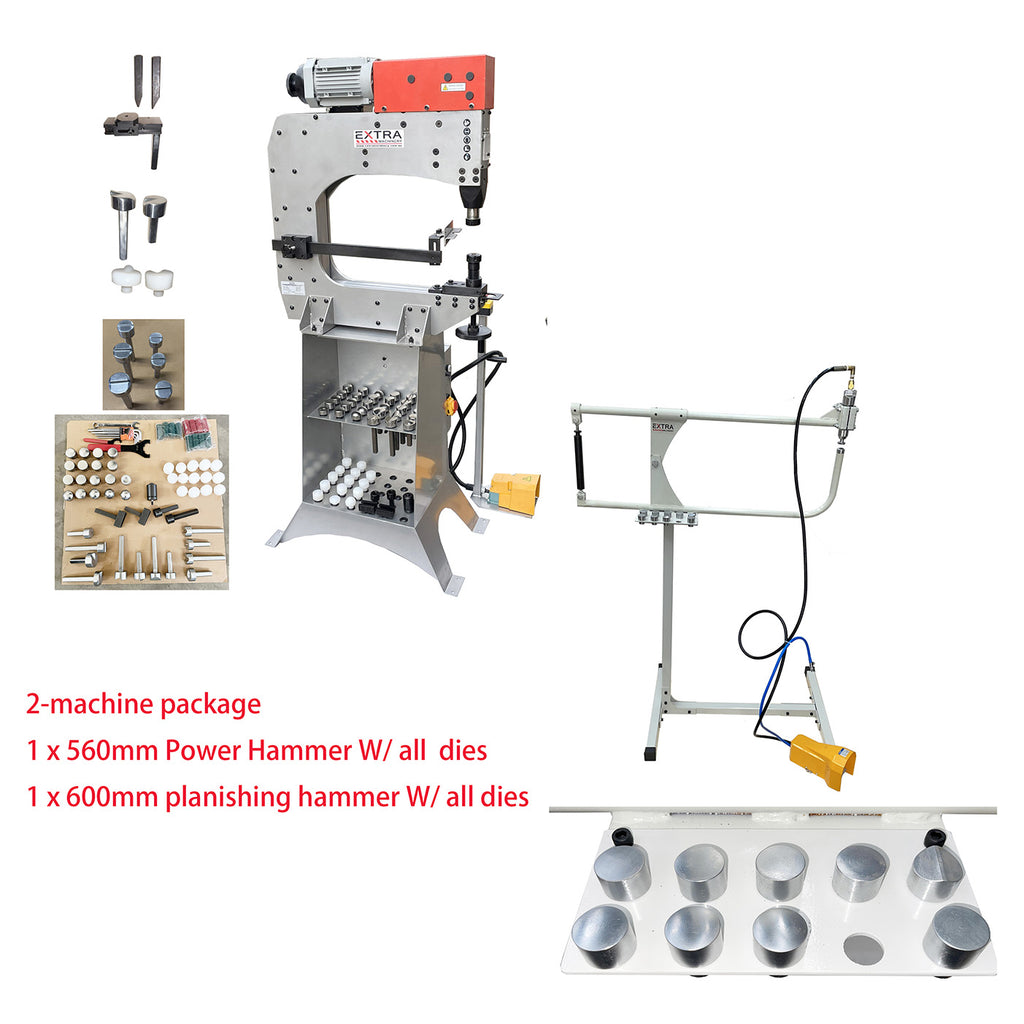

The package include 1 set of PH-560KS Power Hammer and 1 set of PH-61 Planishing Hammer



PH-560KS Power Hammer includes all toolings, such as

  • 4 Sets of steel beading dies (3/16", 1/4", 3/8", 1/2") (16mm Square Shank)
  • 3 Sets of steel offset step dies (1/16", 1/8", 1/4") (16mm Square Shank)
  • 3 sets of thumbnail shrinking dies (2 sets of steel, one set of nylon)
  • Adjustable edge flanging die

PH-560K power hammer includes numerous dies and lets you create your own tooling, so you can easily transform 16-gauge 1.5mm aluminum and 18-gauge 1.2mm mild steel.

Switch out tooling in seconds with the collet chuck; adjust the hand wheels to provide needed clearance based on material thickness.

Use the rigid hammer action setting for direct operations including beading and flanges, and the dampened setting with springs for planishing, shrinking, and other unique processes.

The backstop and variable speed both provide additional versatility for easily completing any type of metal-forming task.

User-friendly speed controls ensure constant accuracy during operation, and steel construction guarantees machine strength.

Execute the full range of shaping functions including beading, doming, stretching, edge setting, louvres, and flanging for industries from automotive to airplane manufacturing with this efficient power hammer.

FEATURES and BENEFITS:

  • Die Options: Several die types provide flexibility and are easy to access with storage in the machine's base.
  • Customizable Tooling: Develop nearly any shape of tooling and use with universal tool holders that allow quick changes.
  • Dual Hammer Settings: The rigid setting lets you keep an exact depth for uniform processes, and the dampened setting for more customization.
  • Adjustable Backstop: Use it fixed for straight edges and with the roller for convex or concave curves.
  • Variable Frequency Drive: VFD for smooth, high-torque variable speed using single-phase power.
  • Variable Stroke Speed: Easily adjust stroke speed via pedal or panel knob for exceptional end results.
  • Speed Controls: Conveniently operate the machine with mobile foot controls that include an emergency stop, or via the panel knob.
  • Steel Construction: The reinforced steel upper and lower frames provide the stability you need for intensive metal shaping.


SPECIFICATIONS:

    • Required power source: 240V, single-phase, 10AMP PLUG
    • Motor: 1.1kw (1.5HP)
    • Throat height: 393mm
    • Throat depth: 558mm
    • Max. distance between hammer & anvil:  130mm
    • Max. aluminum thickness: 16-Gauge  1.5mm
    • Max. mild steel thickness: 18-Gauge 1.2mm
    • Stroke speed (blows per minute): Variable, 0-960 BPM
    • Stroke length: 16mm
    • Anvil travel: 91mm
    • Overall dimensions: 54x124x180cm (W x L x H）
    • Appox Net Weight: 250kg
    • Approximate shipping weight: 296kg

INCLUDE

  • 1 x Straight Fence
  • Roller guide for concave or convex shapes
  • Adjustable edge flanging die (2pc top dies + 1pc adjustable bottom)

    16mm sqaure shank, include 2 top dies

    Turn edges (1/8 - 2 inch) 3mm-50mm on curved panels, door skins, roll pans, and more with this adjustable Edge Flanging Die Set.

Steel Dies:

  • Set of universal holders 16mm Square Shank (14mm opening) for custom tooling
  • 2 Set of thumbnail shrinking dies (16mm Square Shank)
    one set is 38mm OD head for tigher radius
    one set is 50mm OD head for general purpose radius
  • Set of louvre dies (16mm Square Shank)
  • 4 Sets of steel beading dies (3/16", 1/4", 3/8", 1/2") (16mm Square Shank)
  • 3 Sets of steel offset step dies (1/16", 1/8", 1/4") (16mm Square Shank)
  • 1 Linear stretching die (16mm Square Shank)
  • 1 Flat upper hammer die (16mm Square Shank)
  • 1 x Set of Round Die Holders Ø20 x 20mm (16mm square shank)
  • 1 x Set of 3.1" Doming Dies (Ø20 x 20mm Shank)
  • 16 x Radius lower dies (Ø20 x 20mm Shank) - 3/4", 7/8", 1", 1-1/8", 1-1/2", 1-7/8", 2", 3", 4", 5", 6" (1/16" radius edge), 6" radius (1/4" radius edge), 8", 14-1/2", 24", 36"

NYLON Planishing Dies:

  • 1 Flat upper hammer die (Ø20 x 20mm Shank)
  • 13 Radius lower dies (Ø20 x 20mm Shank) - 3/4", 7/8", 1-1/8", 1-1/2", 1-7/8", 4", 5", 6" (1/16" radius edge), 6" (1/4" radius edge), 8", 14-1/2", 24", 36"

    NYLON Thumbnail Shrinking Dies:
          Capacity - 1.5mm thick sheet aluminium
          50mm OD for general radius
          Ø20 x 20mm shank to suit round die holders

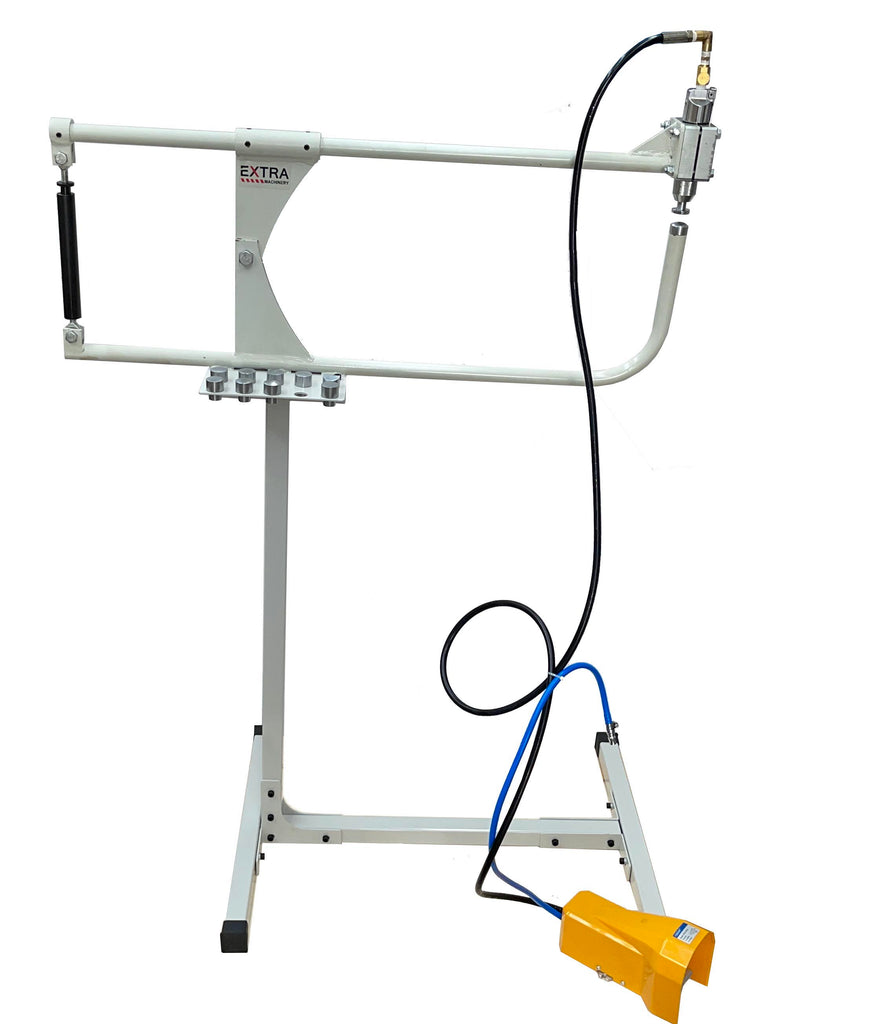

    PH-61 Planishing Hammer  is used  to smooth large areas of metal in metal fabrication and restoration, for example custom motorcycle gas tank and fender manufacturing, street rod bodies, patch panels for auto restoration, repair and metal sculpting.

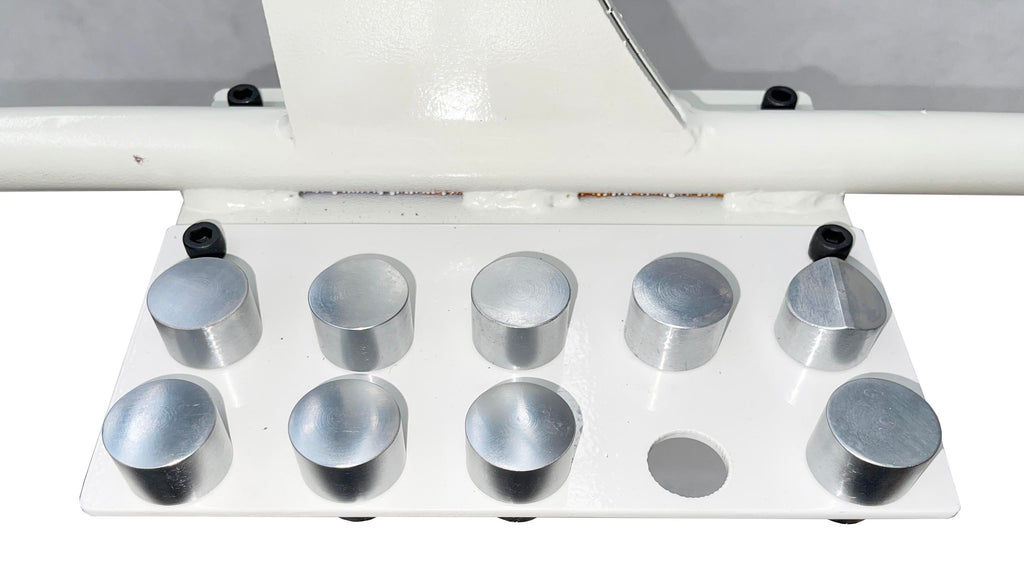

    • 11 Radius Steel Anvils & 1 Stretch Anvil Included
    • 4600 Hits Per Minute @ 90 PSI

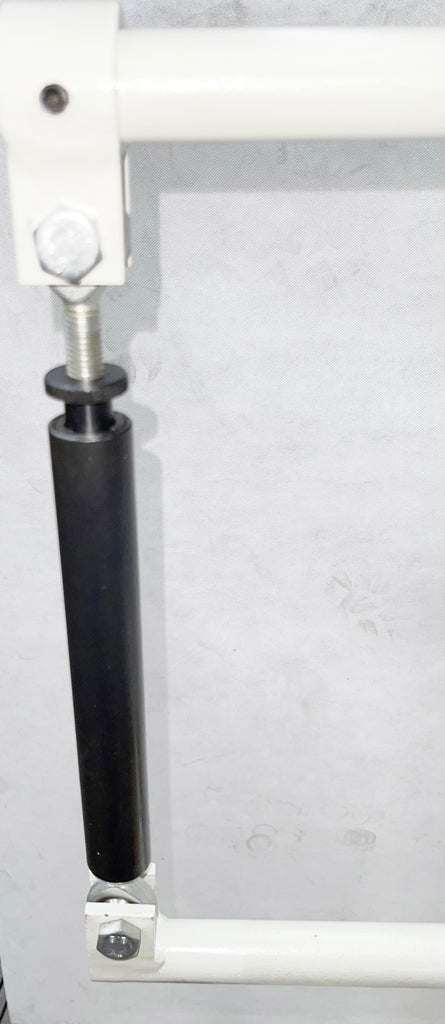

    • Adjuster Sets Load Force and makes Anvil Changes Easy
    • Air Consumption 20 Cfm
    • Foot Pedal Control for Hands Free Operation

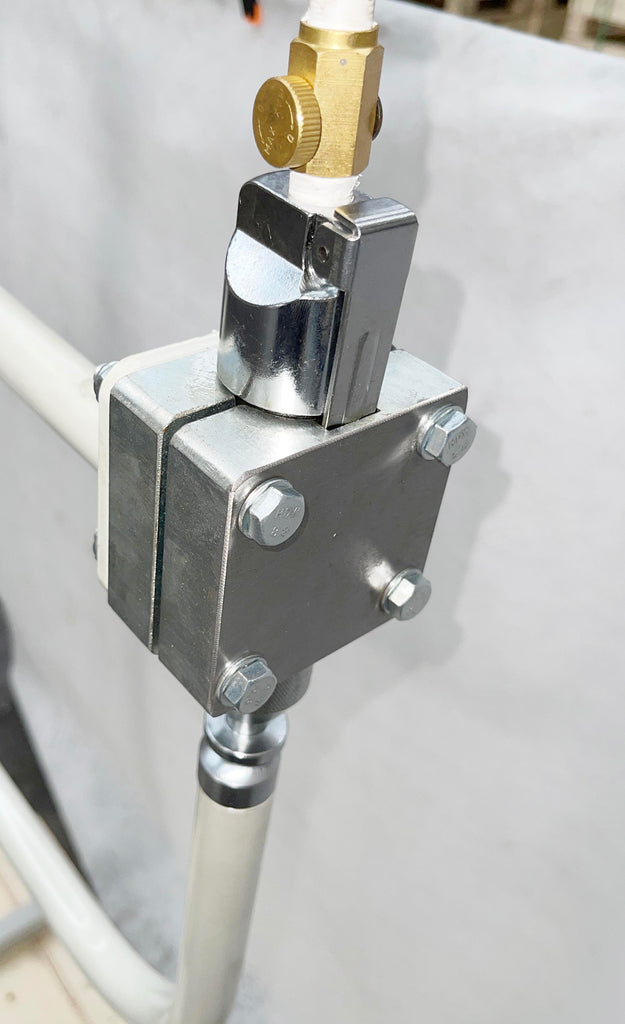

    • Billet aluminum hammer mounting block eliminates all slippage
    • Portable use or on stand

    Throat Depth: 610mm

    Maximum Thickness: 1.2mm Mild Steel

    Top Die:1

    Lower Dies (x 12):

    3/4″ Radius，1″ Radius ， 1 1/2″ Radius， 2″ Radius， 3″ Radius，4″ Radius

    6″ Radius，8″ Radius，12″ Radius，12″ Radius ，Flat & Stretching

    Hammer Speed: 1800 – 4600 BPM

    Air Pressure: 90 – 120 PSI

    Air Supply: 8.8 CFM

    Head Opening:20mm
