Extra Machinery Pty Ltd

$3,700.00

SKU: S5437PSX

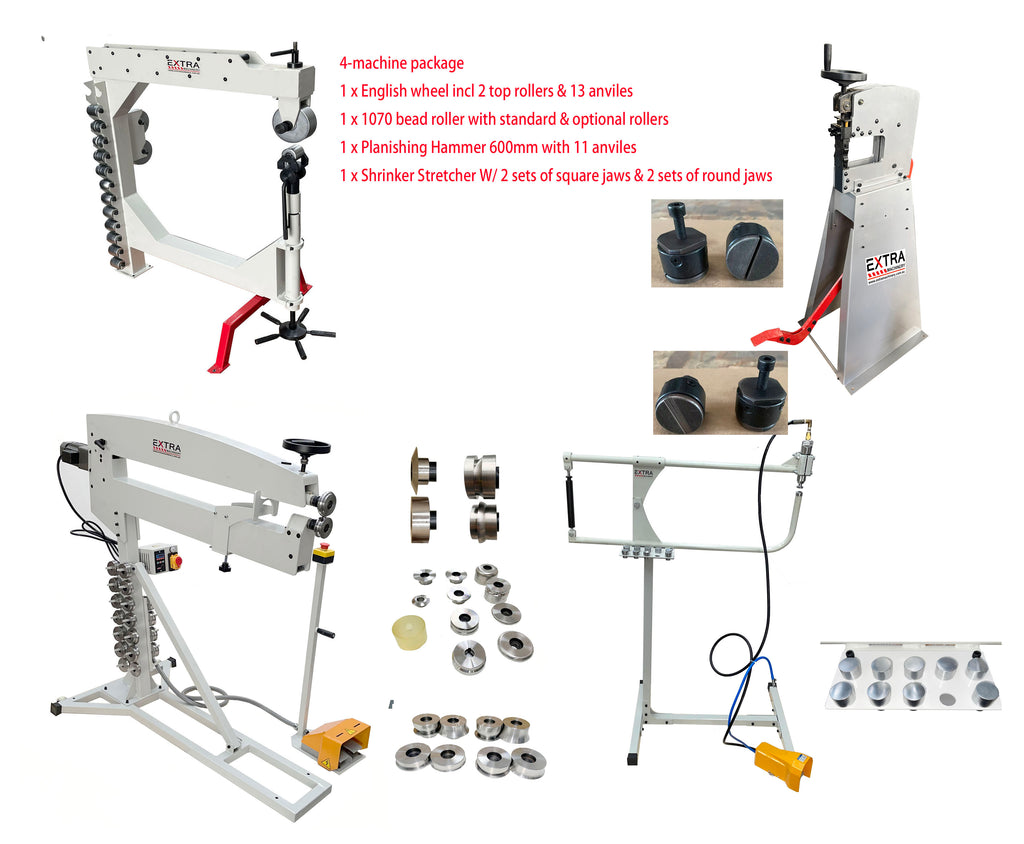

The super package include

1 x  Deluxe English Wheel EW-940D  with 3 top rollers & 13 bottom anvils

1 x  Deluxe Motorised Bead Roller EB-1070 with quick release handle, with 12 pairs of standard dies
       with F6331E forming dies kit,  with F6332E radius dies kit, with F6340E tipping dies, with F6333E lourve dies

1 x  Heavy duty shrinker stretcher with 2 pairs of square jaws (1 x shrinking and 1 x streching) for 2.0mm capacity,  with 2 pairs of round jaws (1 x shrinking and 1 x streching) for 1.6mm capacity and small radius

1 x Pnematic planishing hammer PH-61 with 11 radius anvils & 1 linear stretch anvil. This machine is portable is taking off the stand.

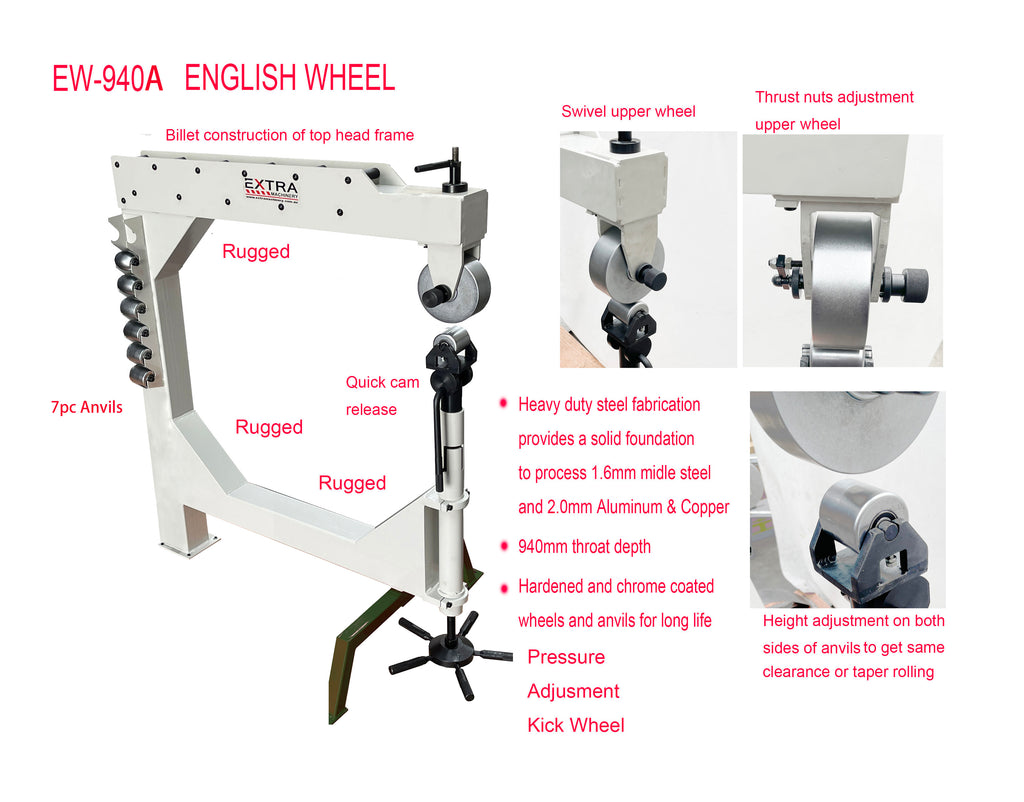

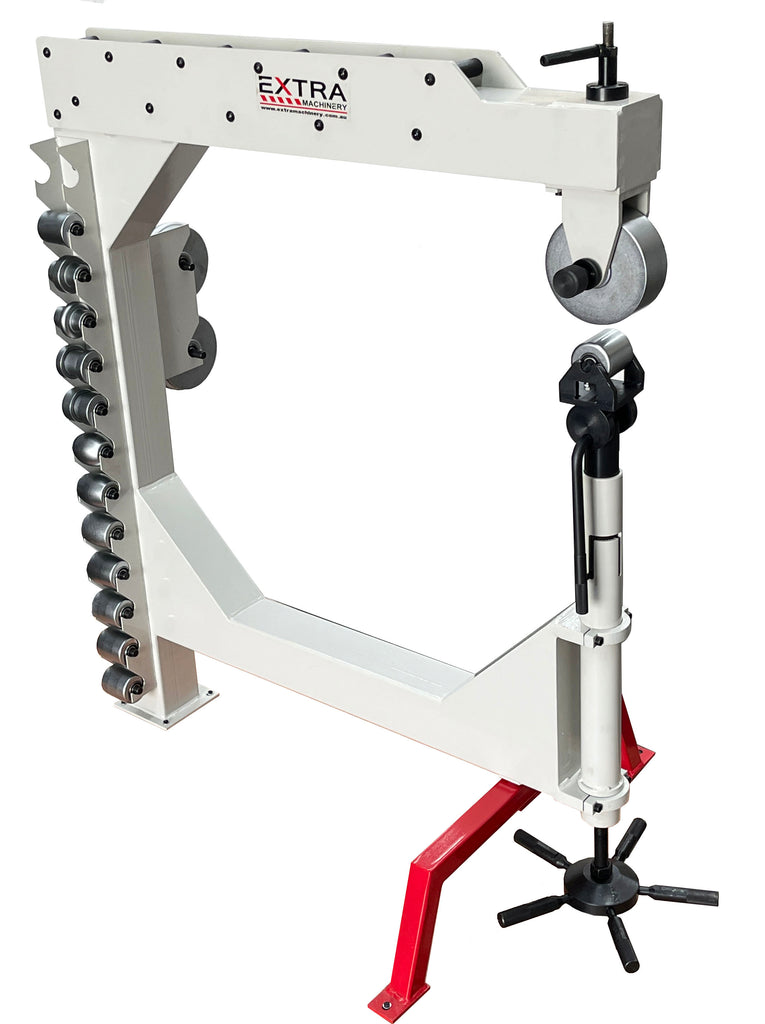

EW-940D English Wheel

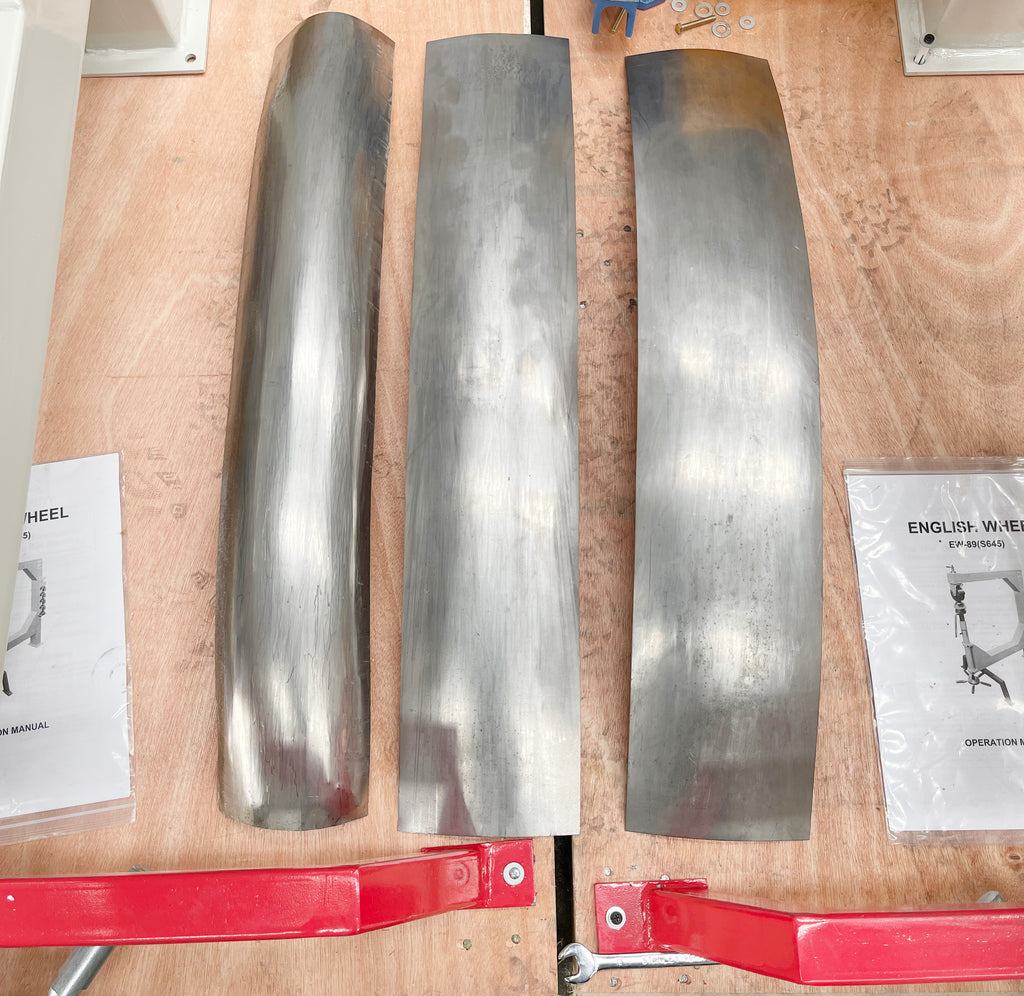

ENGLISH WHEEL IS DESIGNED TO FORM SMOOTH CURVES FROM FLAT SHEETS OF METAL. THEY ARE MAINLY USED IN CAR, MOTORCYCLE, AVIATION AND RACING CAR CONSTRUCTION OR RESTORATION WHERE SHEET METAL PANELS NEED TO HAVE COMPOUND CURVES FORMED.

  • 1.6mm (16 gauge) mild steel capacity.
  • 940mm throat depth can handle almost any project.
  • Comes with 3 upper wheels (152mm x 57mm).

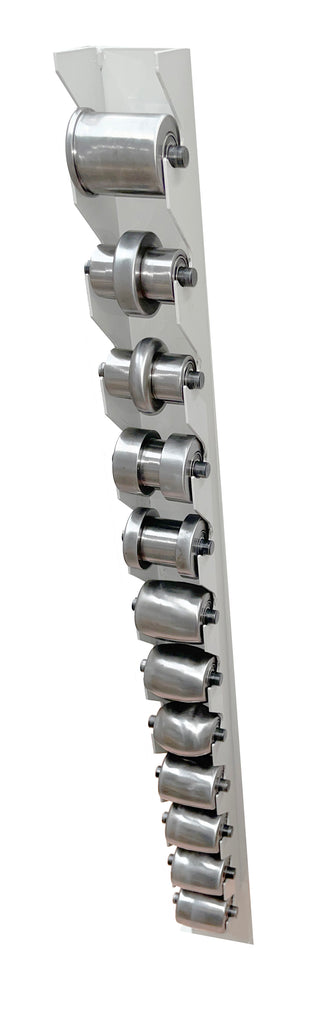

  • 13 hardened bottom anvils (70mm wide):
    •  Radius anvils:  Flat, 50.8, 101.6, 152.4, 203.2, 304.8, 609.6, 914.4mm
    •  3mm (1/8") step anvil

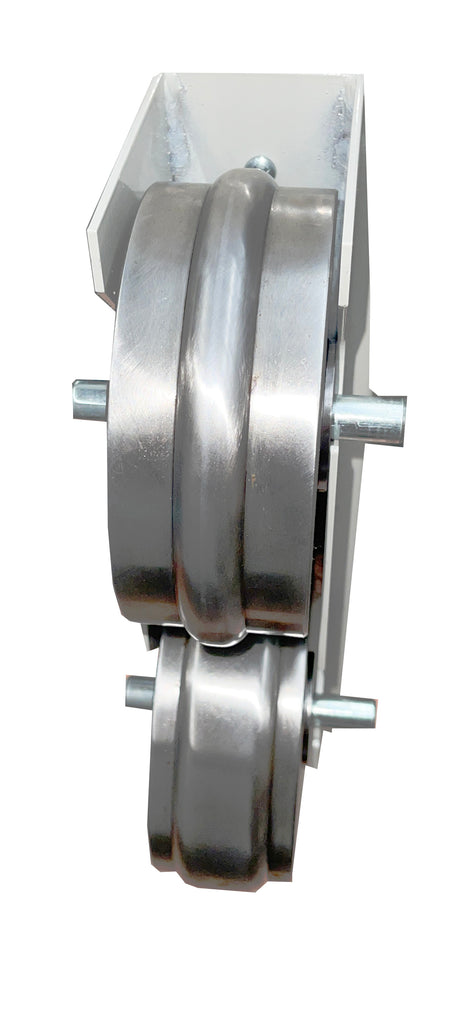

    •  38mm (1-1/2" )and  19mm (3/4") bead anvils.
    •  19mm (3/4") radius narrow anvil
    •  19mm (3/4") flat narrow anvil

  • You can roll beads as well as form metal on this English wheel.
  • Billet structure of head with 8mm thick plates
  • Left/right adjustment of top rollers to aligh with differ bottom anvile such as edging and beading.
  • Up/down adjustment  on both ends of bottom anvils to get taper rolling or get the same gap on both sides
  • CNC machined parts of bottom anvil lifing assembly to get the minimum backlash
  • Chrome coasted top rollers and bottom for rust proof and long life
  • Upper wheels and lower anvils use sealed bearings.
  • Swivel head lets you either push material directly into the throat or at a 90° to it.
  • Quick-release cam allows you to release the panel without changing tension.
  • Adjust the tension via the kick tensioner wheel.
  • Heavy tube construction with heavy rugged welding
  • Wheel racks on the side of the machine gives you a convenient place to put your rolls.

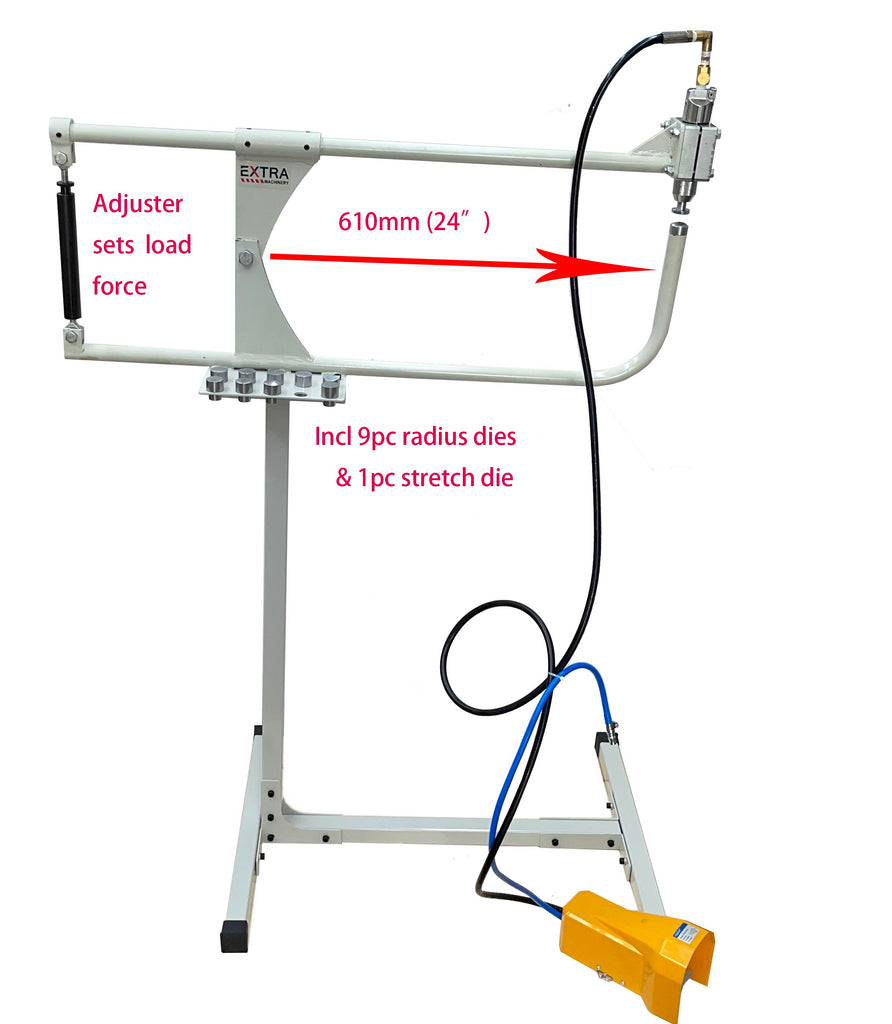

PH-61 Pneumatic Planishing Hammer

Planishing Hammer  is used  to smooth large areas of metal in metal fabrication and restoration, for example custom motorcycle gas tank and fender manufacturing, street rod bodies, patch panels for auto restoration, repair and metal sculpting.

  • 11 Radius Steel Anvils & 1 Stretch Anvil Included
  • 4600 Hits Per Minute @ 90 PSI
  • Adjuster Sets Load Force and makes Anvil Changes Easy
  • Air Consumption 20 Cfm
  • Foot Pedal Control for Hands Free Operation
  • Billet aluminum hammer mounting block eliminates all slippage
  • Portable use or on stand

Throat Depth: 610mm

Maximum Thickness: 1.2mm Mild Steel

Top Die: 1pc

Lower Dies: 12pc

3/4″ Radius，1″ Radius ， 1 1/2″ Radius， 2″ Radius， 3″ Radius，4″ Radius

6″ Radius，8″ Radius，12″ Radius，12″ Radius ，Flat & Stretching

Hammer Speed: 1800 – 4600 BPM

Air Pressure: 90 – 120 PSI

Air Supply: 8.8 CFM

Head Opening:20mm

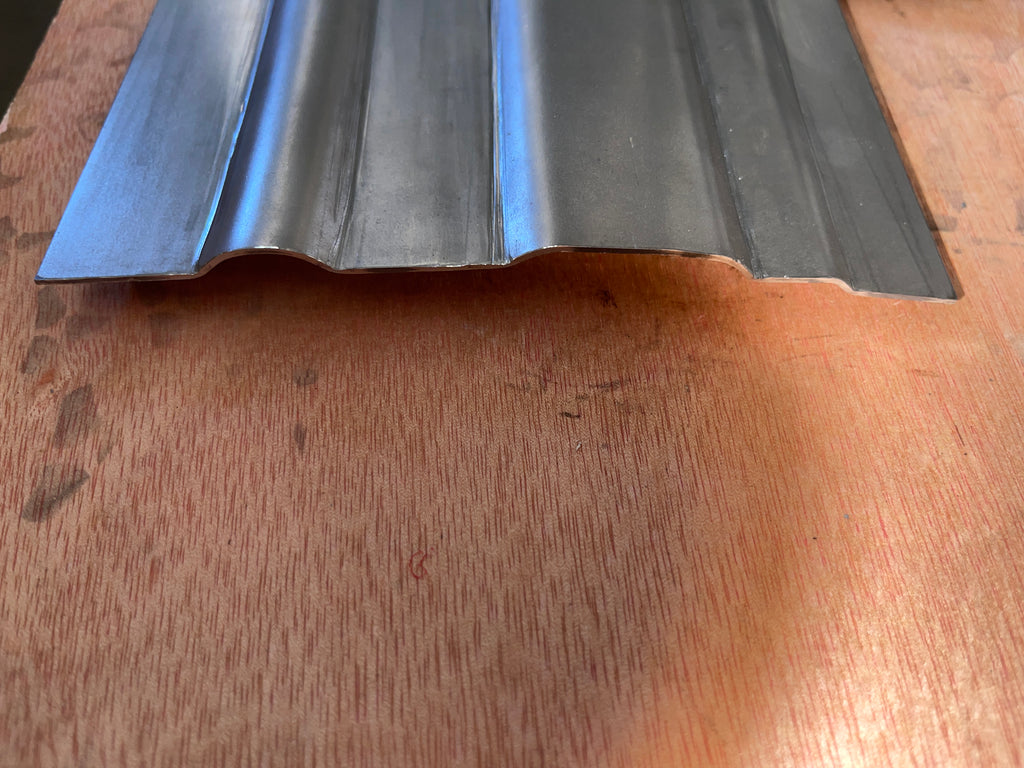

EB-1070 MOTORISED BEAD ROLLER EB1070 W/VARIABLE SPEED

MAXIMUM BENDING CAPACITY 1.2MM MILD STEEL  (NET WEIGHT 180KG)
INCL F6331E Forming Kit dies +F6332E Radius Dies + F6333E Lourve Dies + F6340E Tipping Dies

  •  1070mm throat depth, and 2140mm panel can be  processed from roller centre
  •  Motorised roller shafts with gear reduction box
  •  240V single phase motor with variable speed control
  •  Foot pedal switches to control forward/reverse running.
  •  105mm distance between top & bottom roller supports
  •   Top shaft moves forward/backward to align the centre lines of top/bottom rollers
  •   Big hand wheel adjusts the depth of top roller.
  •   All rollers are hardened, and keyway mounted
  •   Include 12 sets rollers as standard AS BELOW
  •   Two roller wheels are fitted on the base for easily moving the machine
  •   Include material stop fence & worktable for long workpiece

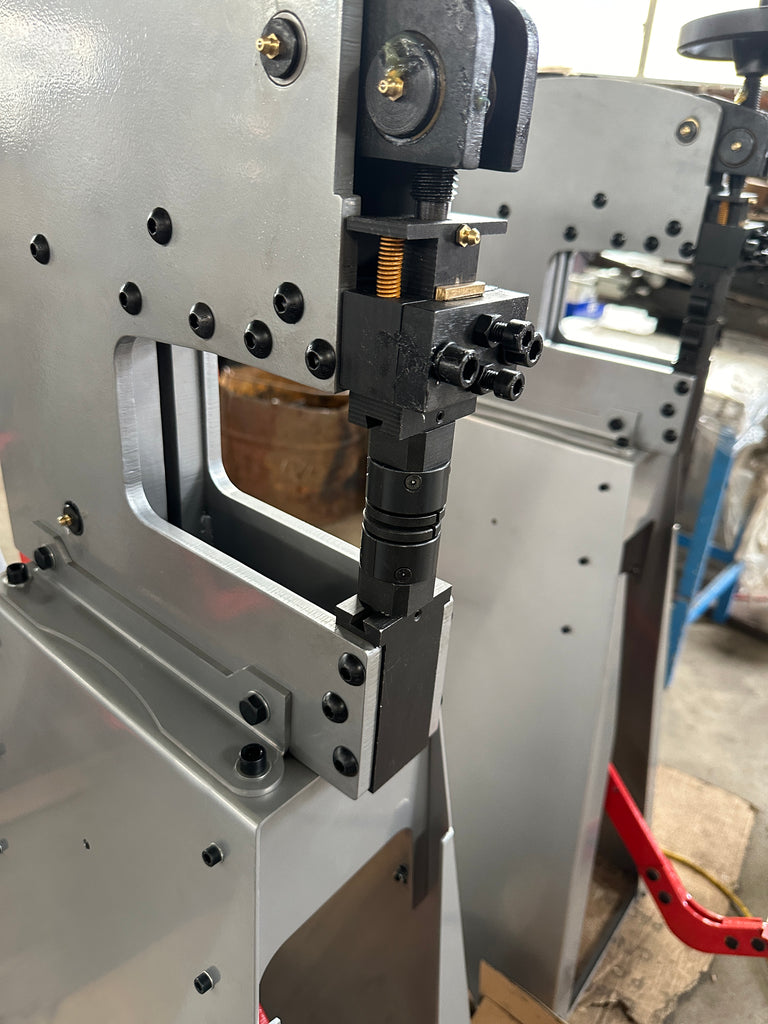

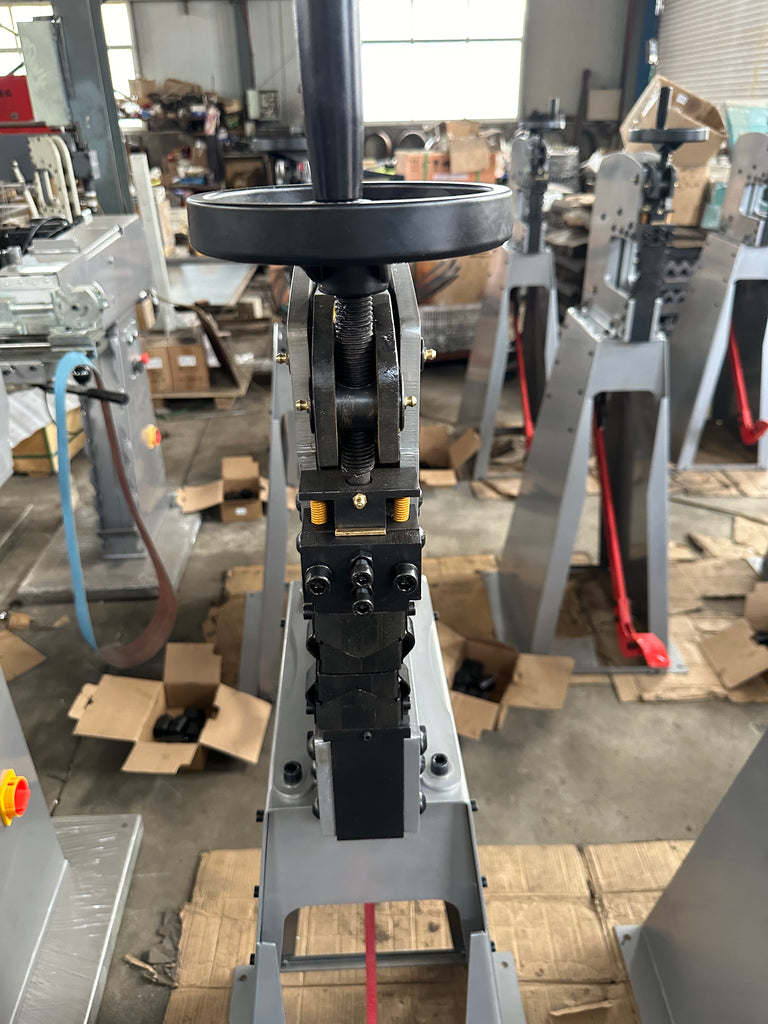

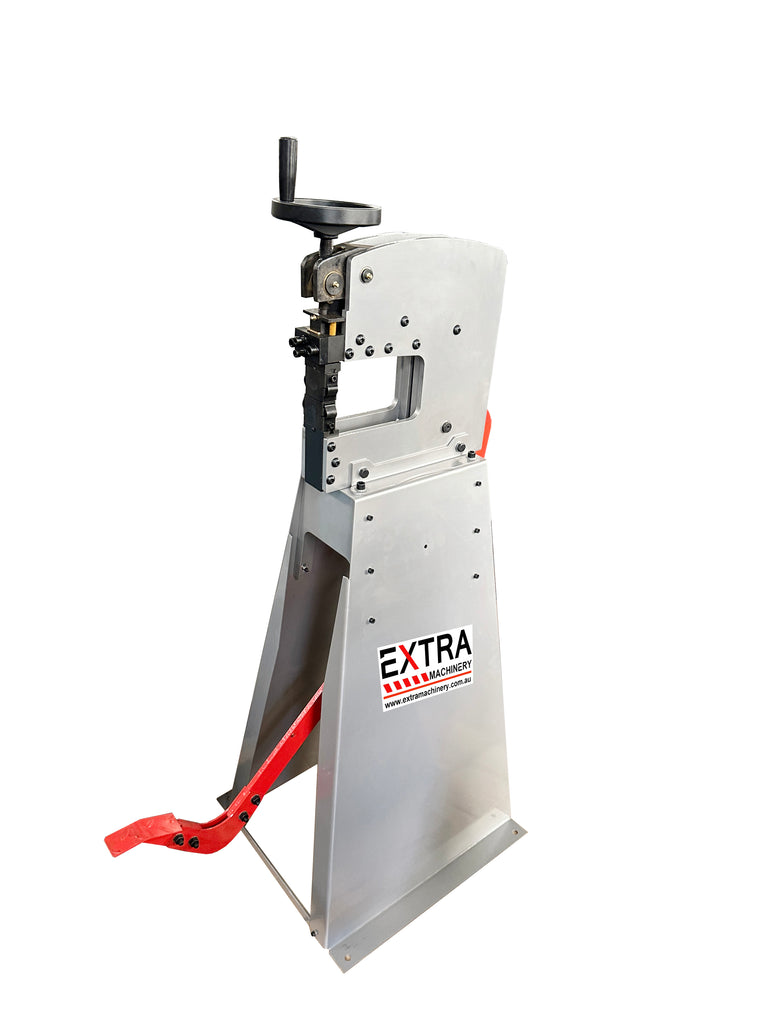

SS-20FRX Heavy Duty Shrinker Stretcher

is designed for heavy-duty commercial use and features an extra-deep, 8” (204mm) throat to allow working large pieces and panels.

Incl Square Jaws for Shrinking & Stretching of 2.0mm capacity of steel

Incl Round Jaws for Shrinking & Stretching of 1.8mm capacity for tight radius

Features:

  • Strong Billet Structure
  • 8" throat for bigger jobs
  • Shrink or stretch up to 1.8mm mild steel
  • Hardened-steel jaws with smooth radius corner for smooth curving material without any damage
  • Quick change jaws.
  • Include 1 pair of square shrinking jaws and 1 pair of square stretching jaws
  • Include 1 pair of round shrinking jaws and 1 pair of round stretching jaws
    (Some photos may show with optional square jaws for 2.0mm capacity)
  • Foot operated to save your hands to hold the material
  • Adjustable stroke hand wheel to control consistent shrinking and stretching
  • Heavy duty laser cut fabricated stand providing good rigidity

Shrink and Stretch Metal

Shrinking jaws contract metal to create inside curves; stretcher jaws expand metal to create outside curves. Use both to create distinctive shapes and designs, or recreate original shapes on your project vehicle.

**some photos may be for other models.
