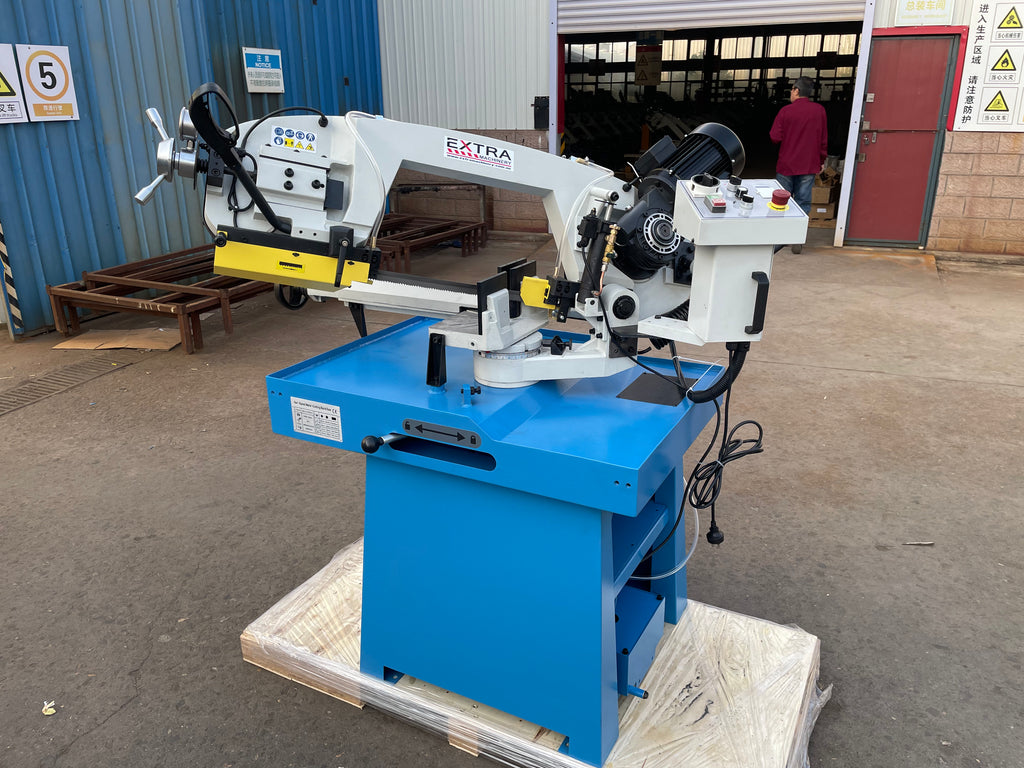

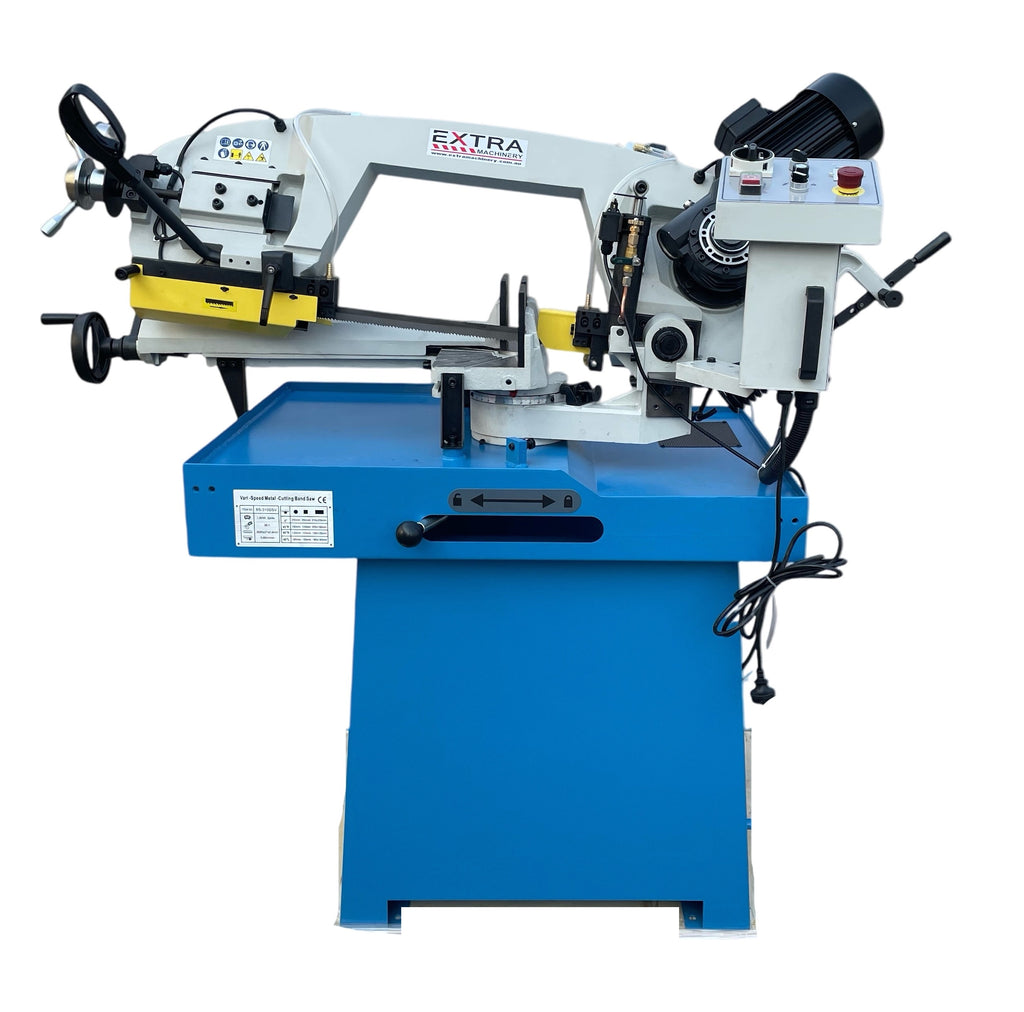

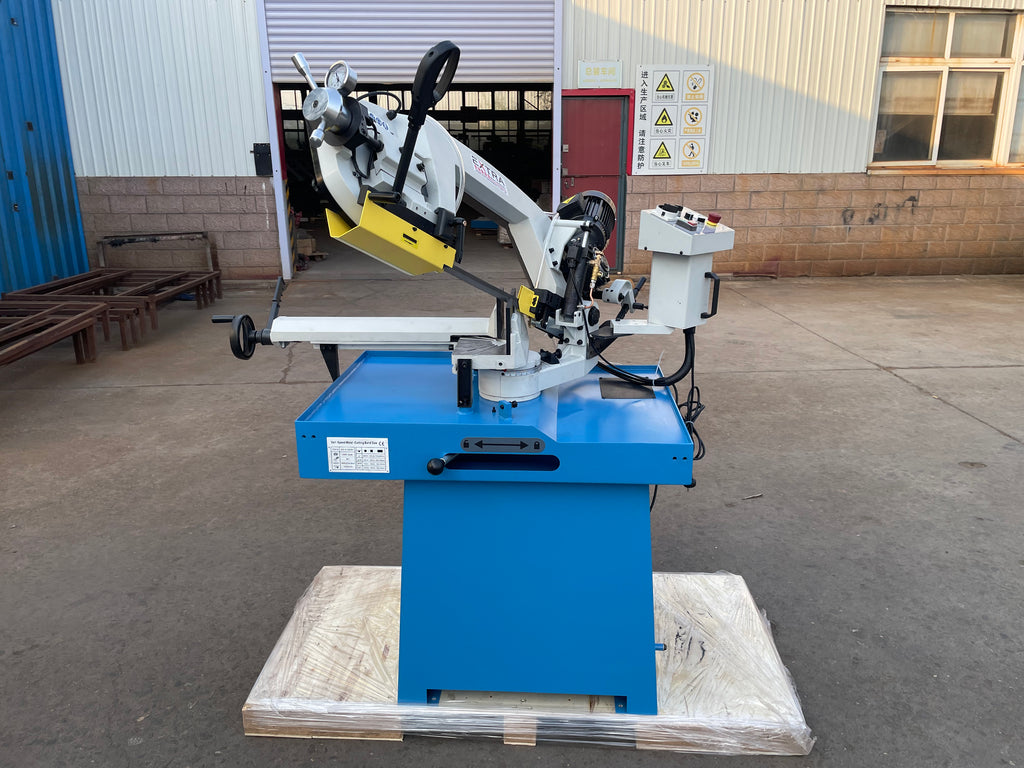

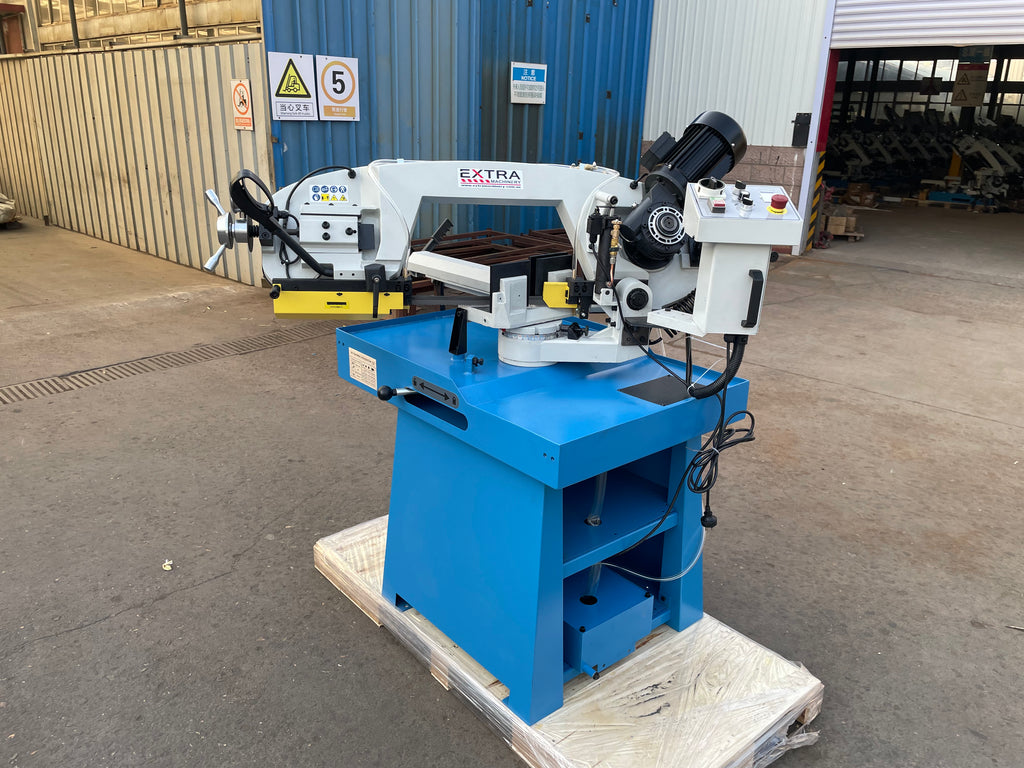

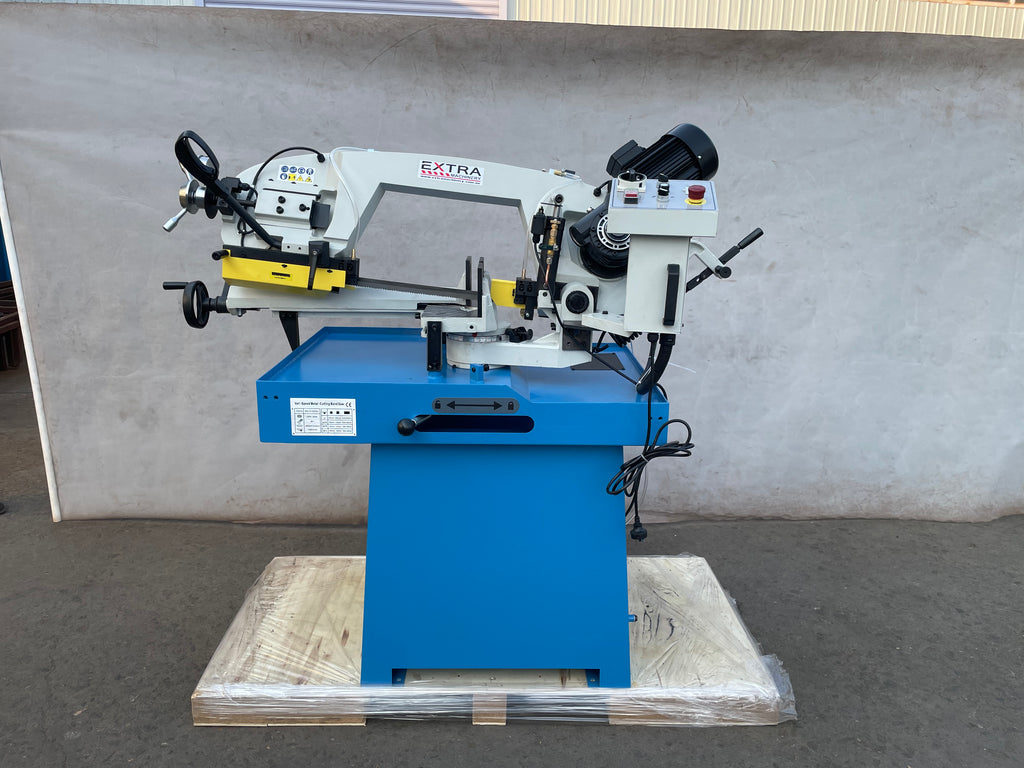

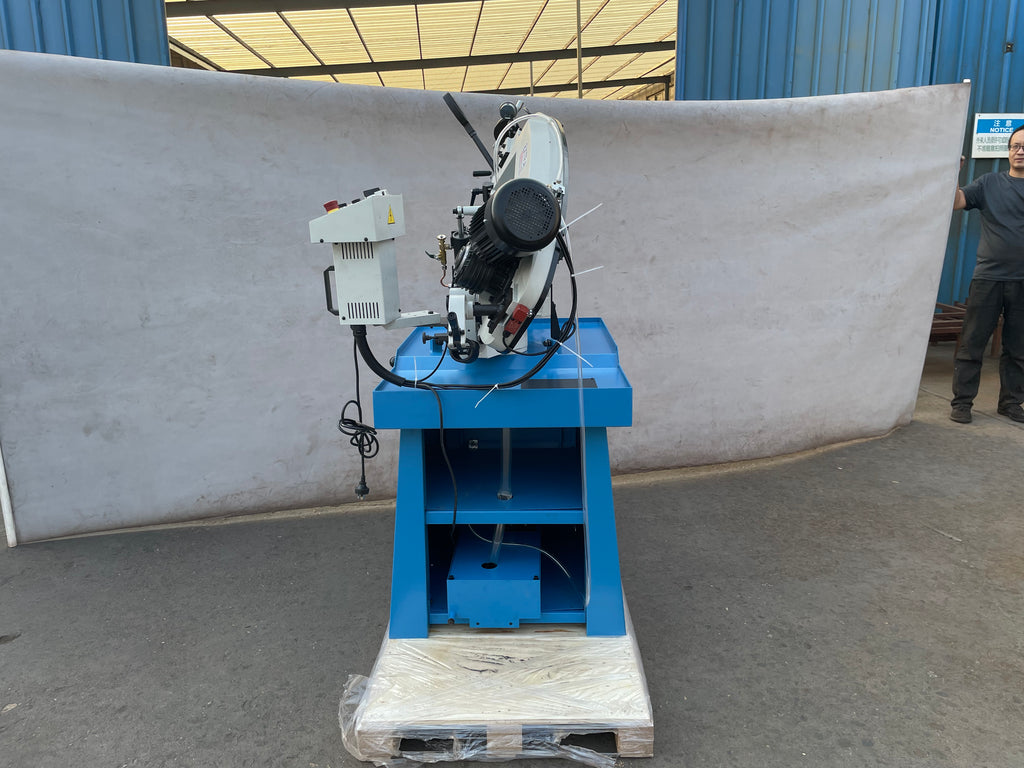

BS-310DSV - Dural Swivel Head Metal Cutting Band Saw Variable speed 310 x 205mm (W x H) Rectangle Capacity
STOCKING ARE COMMING IN MIDDLE NOV 2026
Popular Metal Cutting Bandsaw In Europe
BS-310DSV Industrial VFD Variable speed 5-90mpm, Dural Mitre Cut 45 degree left & right and Single mitre cut 60 degree right
- 310 x 205mm rectangular capacity
- Electronic variable blade speed, Industrial VFD controlled

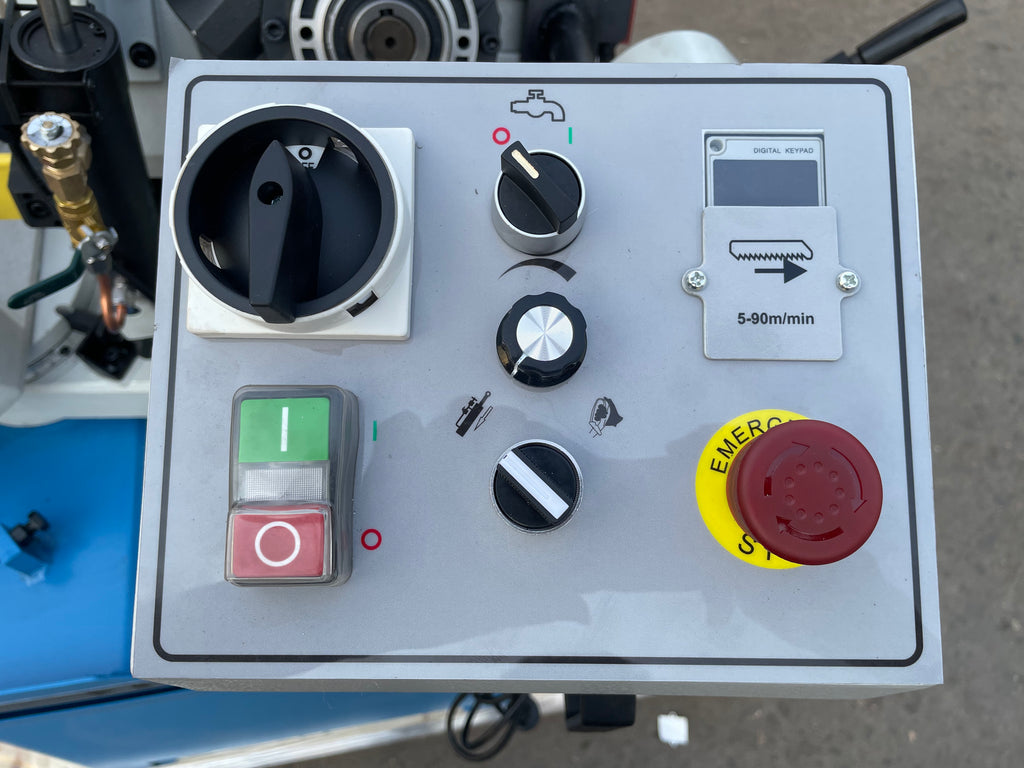

- Digital saw speed display
- 1.5KW big ratio gear reduction motor provides big torque

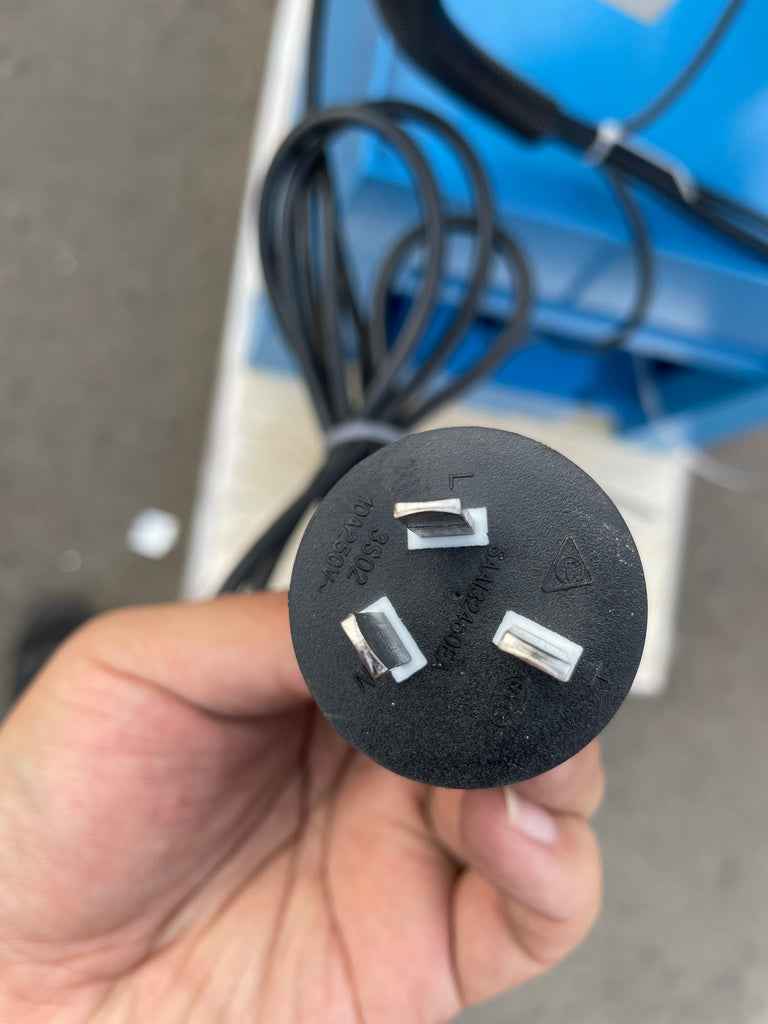

- 240V-50HZ-Single Phase 10Amp Plug
- Two cutting mode

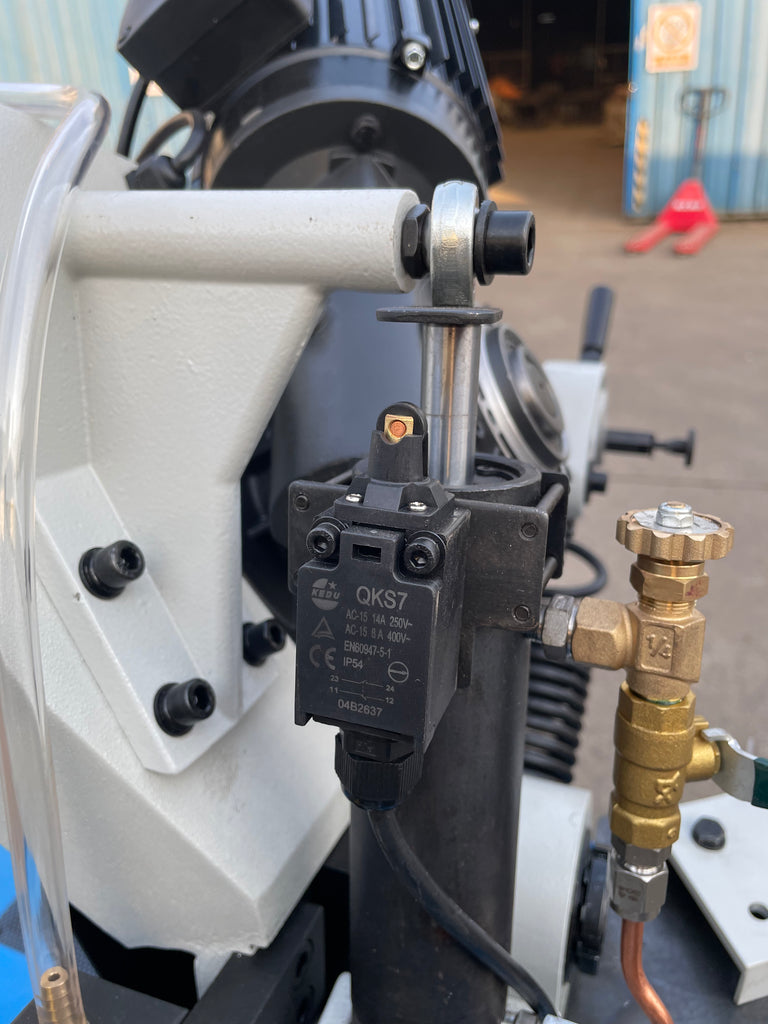

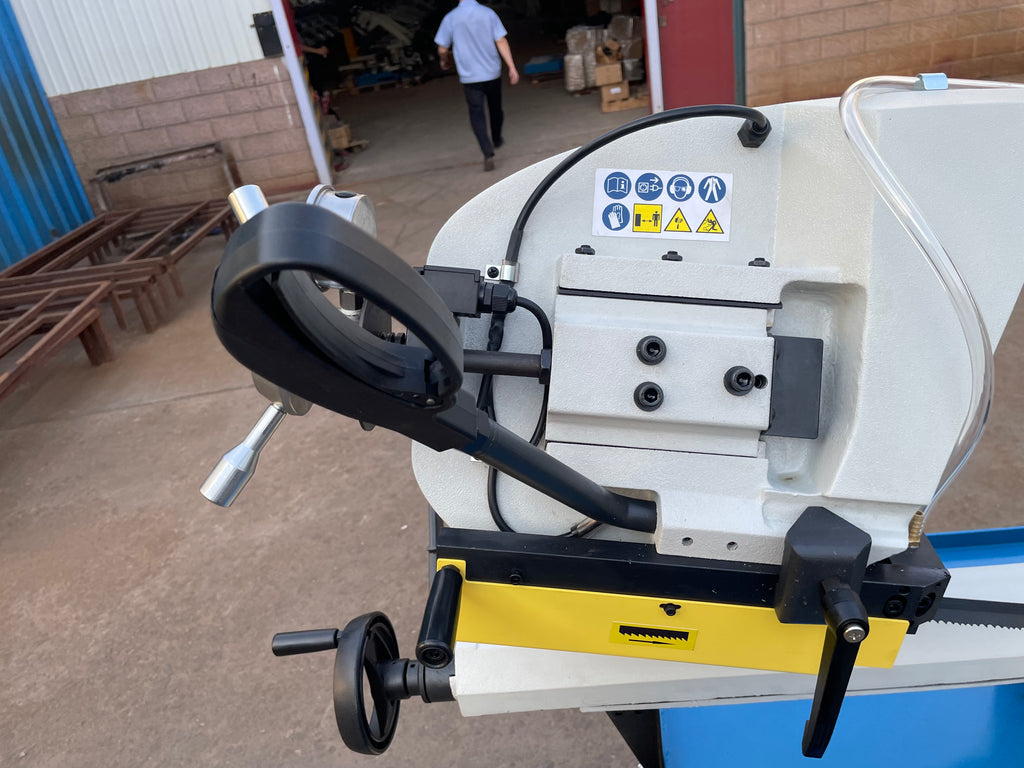

Manual cutting with trigger switch handle

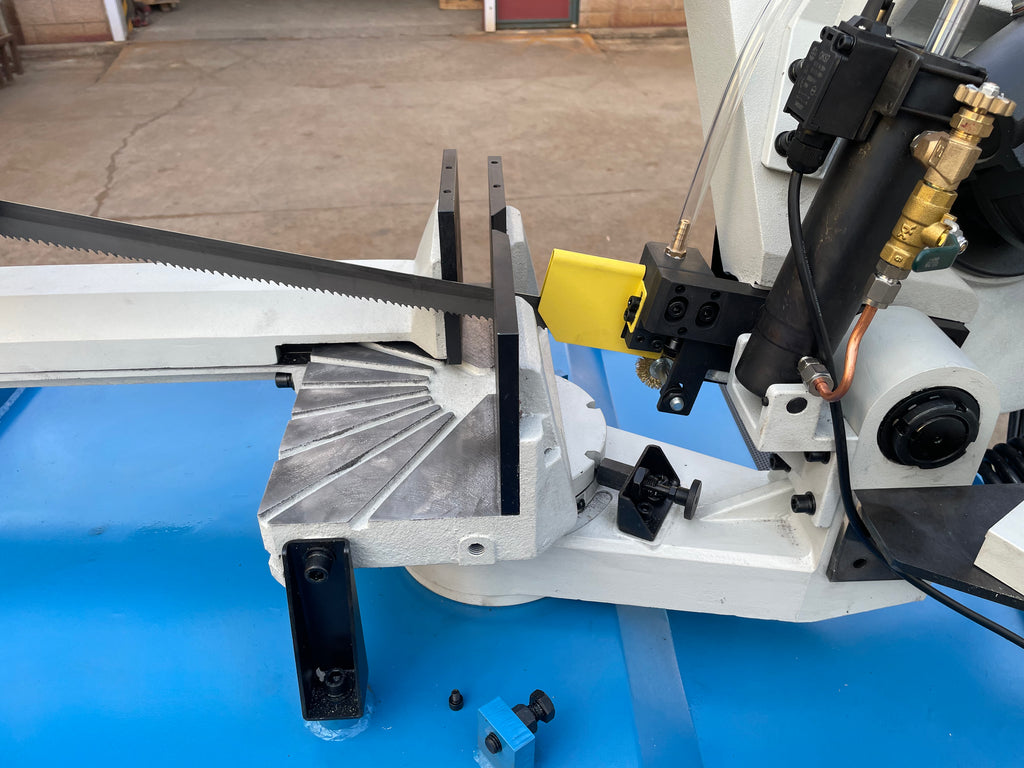

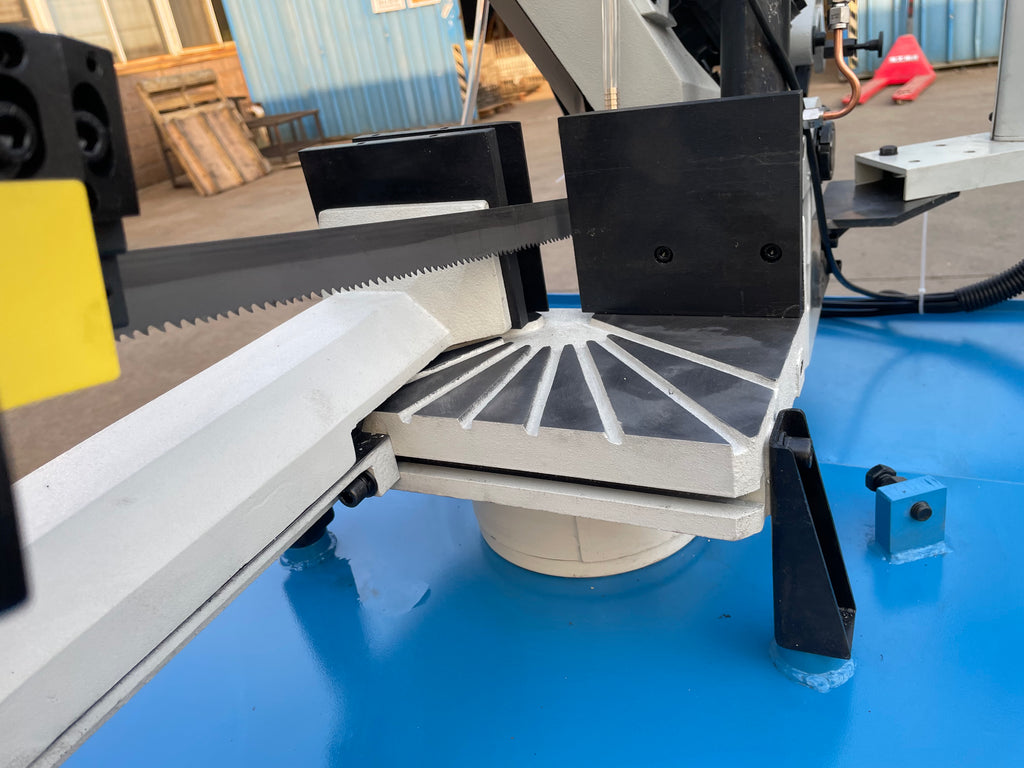

Auto cutting with adjustable hydraulic down feed with auto stop switch - Quick action clamping vice lever for quick workpiece lock & release

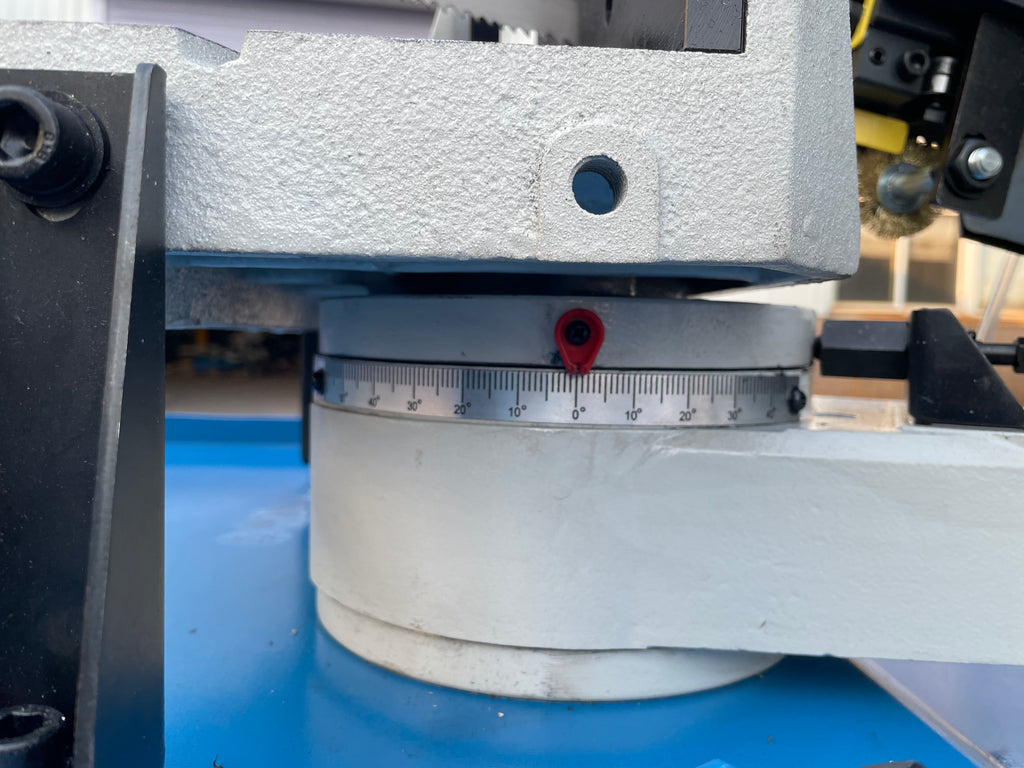

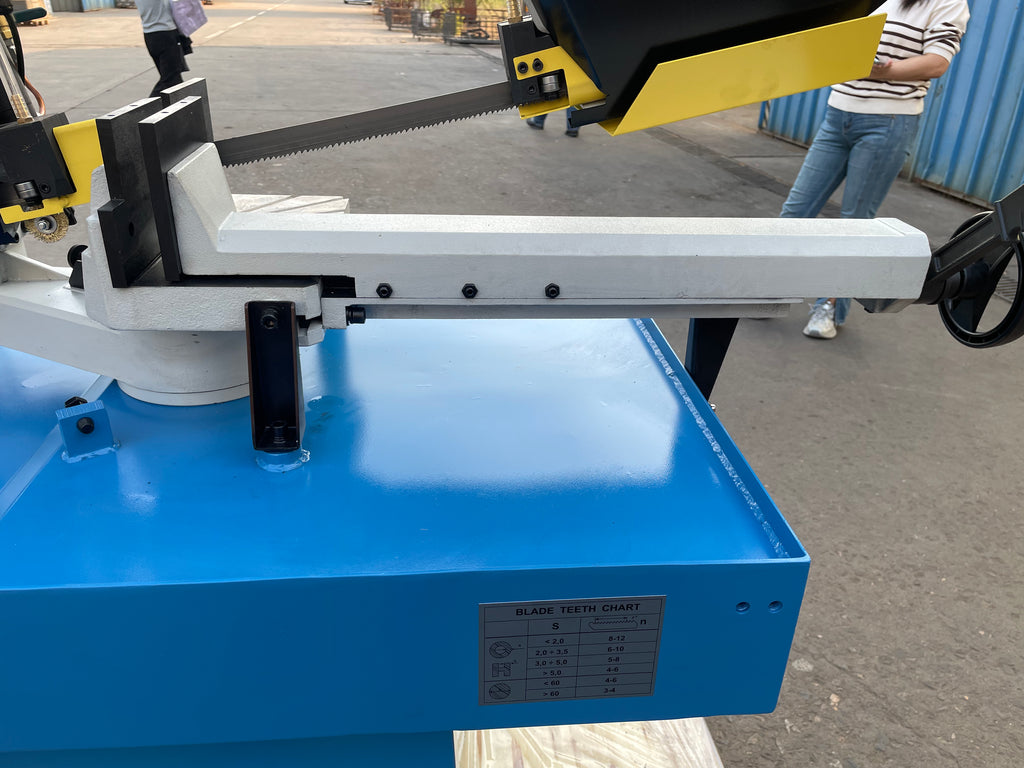

- Saw head swivel 45º left or right side

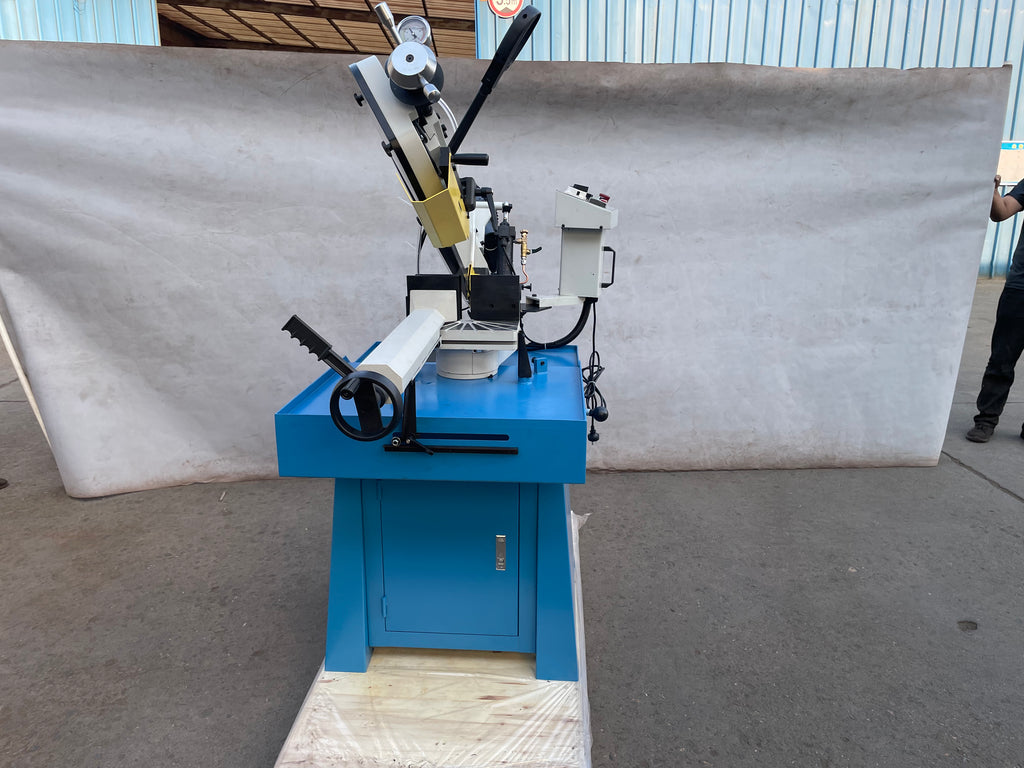

- Saw head swivel to 60º in right side
- Quick lock & release Handle for saw swivel head
- Coolant system included
- Easy use blade tension system with saw tension gauge

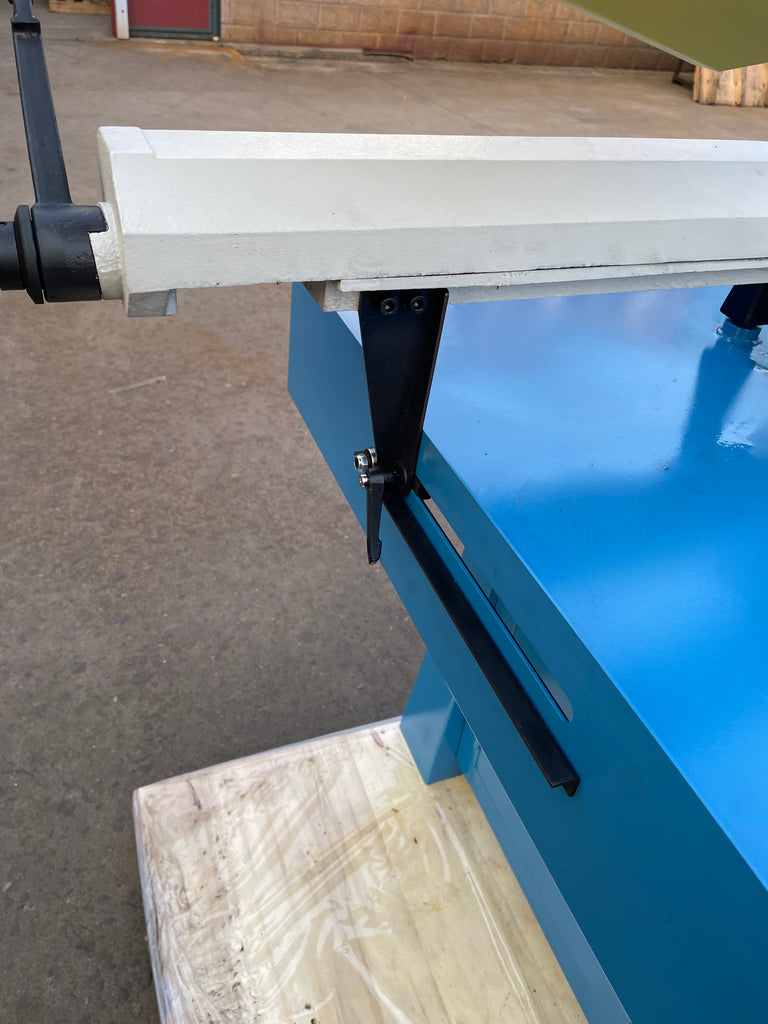

- Adjustable cutting length stop

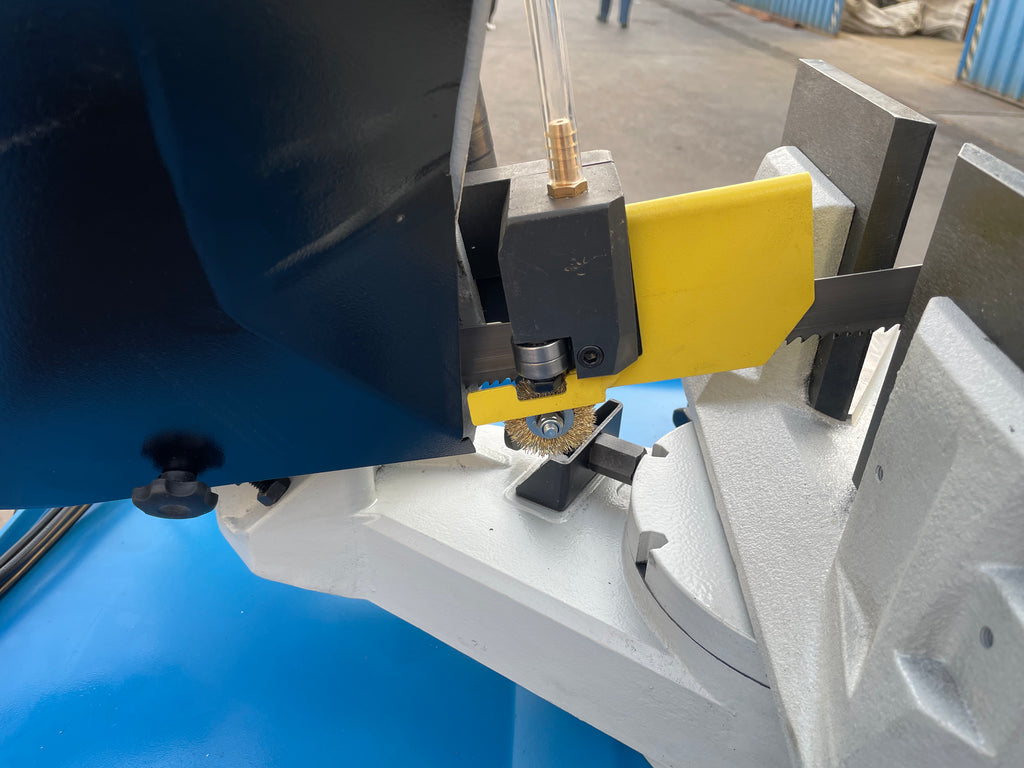

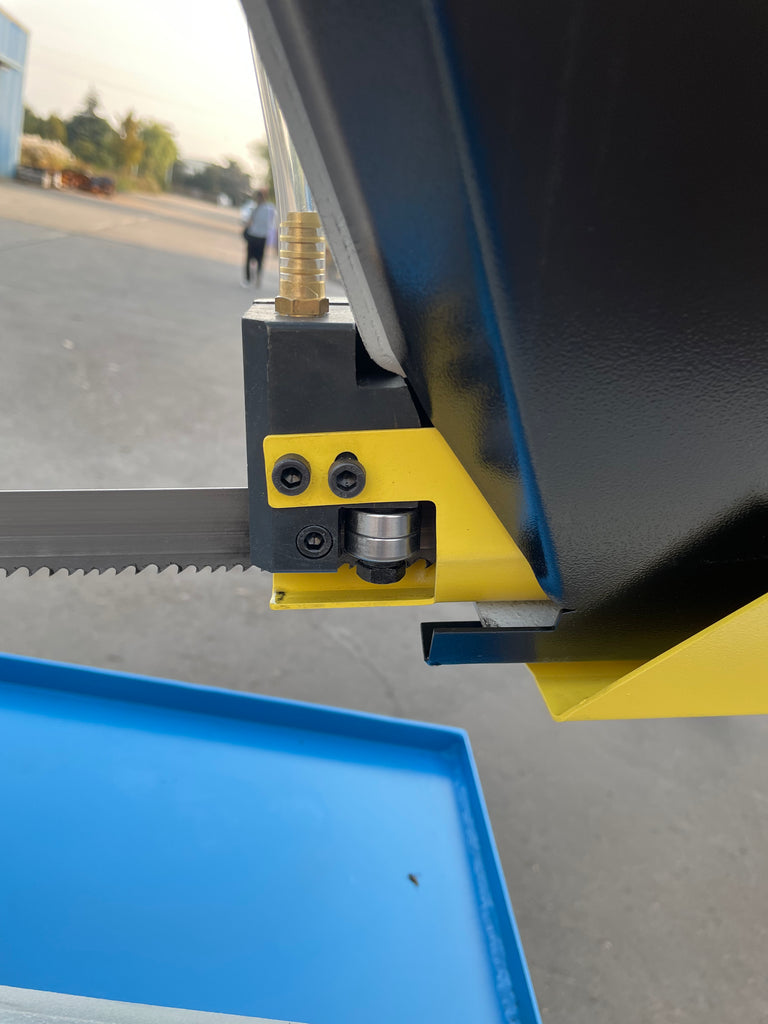

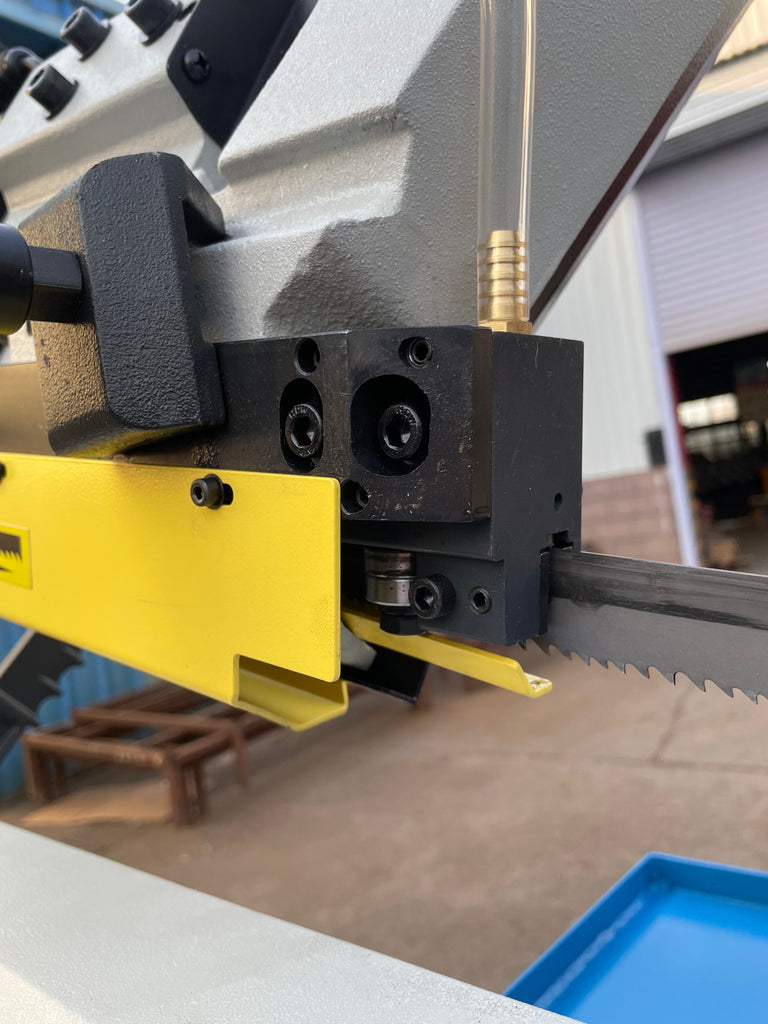

- Blade guide rollers are adjustable

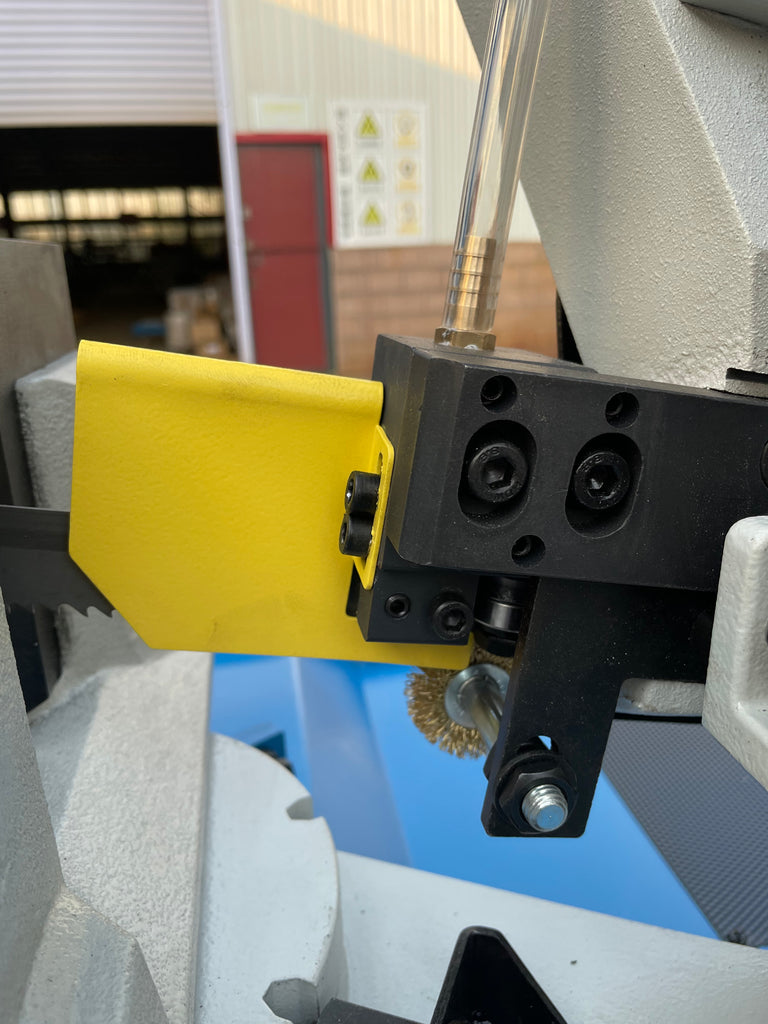

- Blade cleaning brush included
- Blade tension gauge included standard

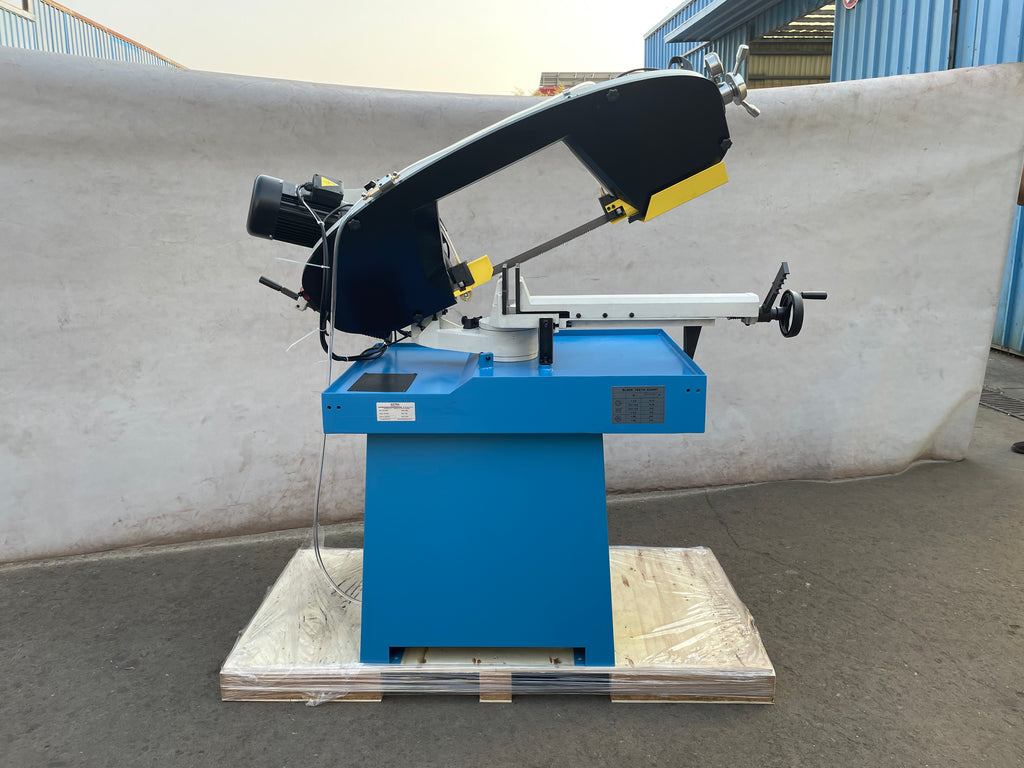

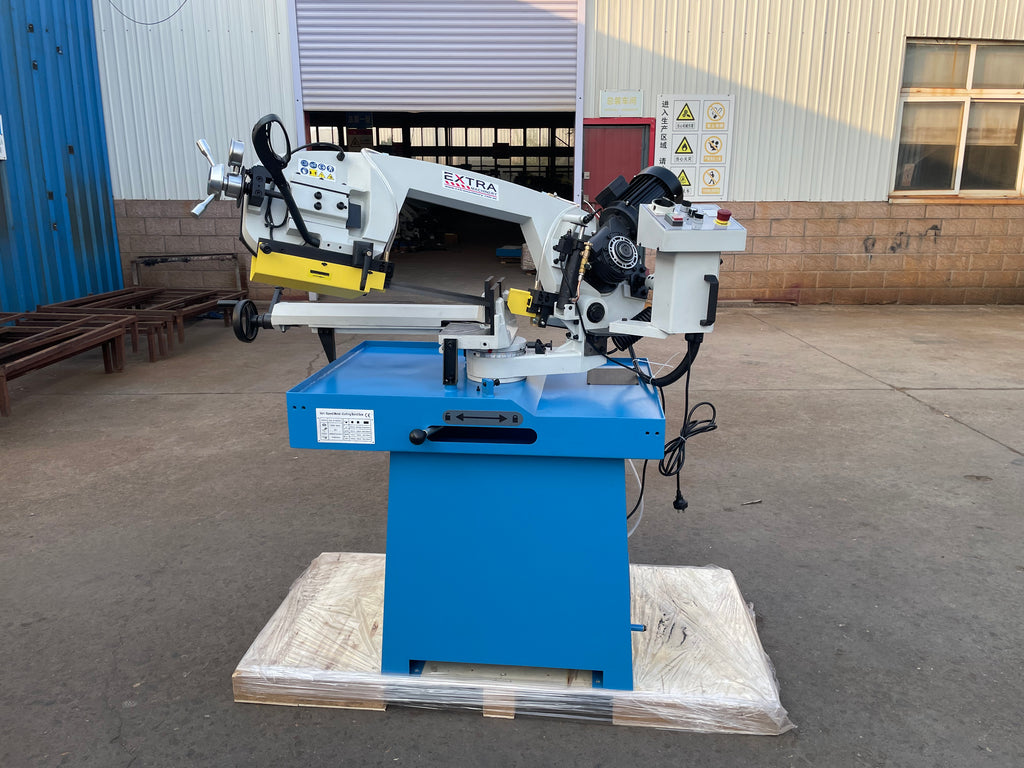

- Machine stand included
Specifications
|
BS-310V |
0° |
45°L |
45°R |
60°R |
|
Round (mm) |
250 |
190 |
190 |
130 |
|
Square (mm) |
250 |
155 |
155 |
125 |
|
Rectangular (mm) |
310 X 205 |
180x140 |
205x160 |
130x125 |
Main Motor 1.5KW
Power supply: 240V-50HZ, Single Phase 10Amp
Saw Speed: 5-90mpm
Saw Blade: 2680x27x0.9mm
Net Weight: 330kg (Approx.)
