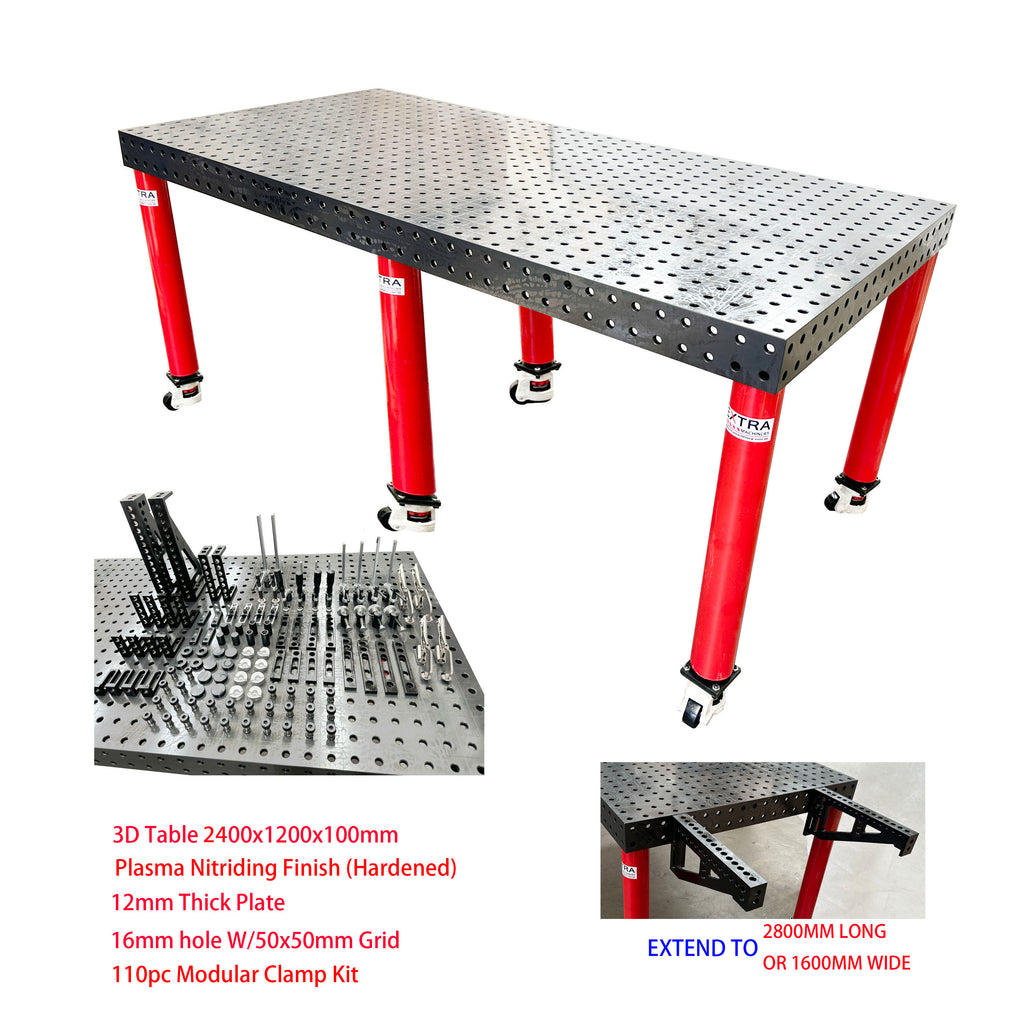

Heavy 3D Welding Table -Nitrided Finish

16mm Hole 4 HOLES W/50x50mm Grid Table Surface & Side

Laser etched ruler scale

CNC Machined
12mm Thick Table Plate
High flatness tolerance of +/- 0.1mm over 1m2
2400x1200x100mm
16mm Hole W/50x50mm Grid
6 Heavy Duty Legs W/Castors with adjustable height
Include 110pc Clamp Kit.
Angle Bracket & Square can extend the table up to 2800mm long or 1600mm wide.
  • 4 x Weld Clamps 60mm throat w/100mm clamp height
  • 4 x Weld Clamps 80mm throat w/150mm clamp height
  • 2 x Weld Clamps 100mm throat w/200mm clamp height
  • 2 x Quick Hold Down Clamp W540  Clamp Height 60mm, Throat 65mm
  • 2 x Quick Hold Down Clamp  W542  Clamp Height 90mm, Throat 93mm
  • 4 x side clamp 38mm
  • 4 x Insert Stops
  • 4 x Positioning Bars
  • 8 x Round Material Rests
  • 4 x Spacers
  • 4 x Multi-Purpose Riser/Stops
  • 8 x Magnetic Rests
  • 4 x Threaded Adaptors
  • 28 x Ballock Bolts & Spacers
  • 4 x Flat Edge Stop 115mm
  • 4 x Flat Edge Stop 150mm
  • 4 x Flat Edge Stop 190mm
  • 4 x Right Angle Bracket with Slot 90mm & 1 Hole  40mm
  • 4 x Right Angle Bracket with Slot 90mm & 3 Holes 90mm
  • 4 x Right Angle Bracket with Slot 90mm & 5 Holes 140mm
  • 2 x Stop and Clamp Square with 200x100x75mm
  • 1 x Left Hand Angle Bracket & Square 400x200x100mm
          (4 machined surfaces with a combination of 16mm holes & slots)
  • 1 x Right Hand Angle Bracket & Square 400x200x100mm
          (4 machined surfaces with a combination of 16mm holes & slots)
